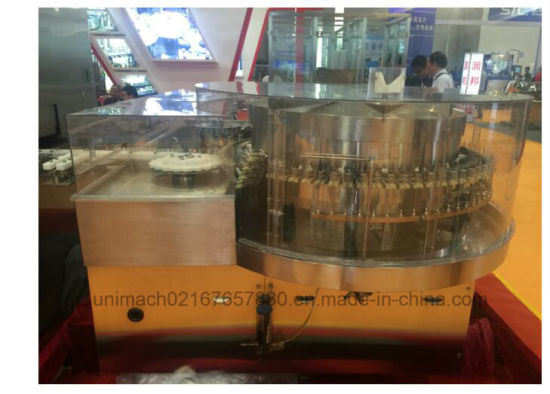

Vertical Ultrasonic Washing Machine (KCQ-30)
Brief description
The series of vertical ultrasonic washing machine is a new product developed by our company by making efforts for years, after introducing and improving technologies from abroad according to actual situations in China, the product is made by advanced technologies, features of simple structure, stable operation, highly reliable, and lower noise, the machine is easy to operate and clean, apply for washing in tubed bottles or moulded antibiotic vials in pharmaceutical factories, and used for cleaning ampoules or oral medical liquid bottles.
Features
The machine is make in a vertical column structure, and mechanical gripper take the bottle by means of overturning and tracing, the bottle is washing by ultrasonic cleaning, water and compressed air spraying and washing, it could achieve the automatic procedures such as bottle feeding, ultrasonic washing, washing exterior surface of the bottle, washing the interior surface of the bottle, bottles out-feeding. The whole bottle transferring process is like gear coupling principle. The machine is stable and applies for different size of the bottle, with low breaking rate, without cross contamination between water tube and air tube, fully comply with GMP.
| Model: | KCQ30 |
| Suitable bottle size: | 2-5ml |
| Power supply: | 380V 50Hz |
| Power consumption: | 15.7KW |
| Water injection pressure: Dosage: | 0.15MPa 0.5m3/h |
| 0.3Mpa Dosage: | Clean air pressure: 0.3MPa 30m3/h |
| Bottle breakage ratio: | ≤0.1% |
| single noise: | ≤70dB |
| Weight: | about 2500Kg |
| Dimension(L×W×H): | 1834×1900×1300mm |
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
