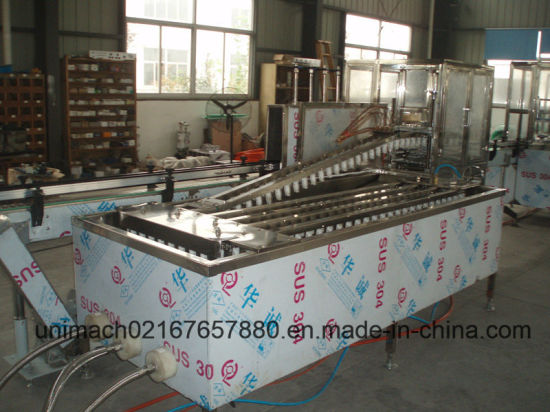

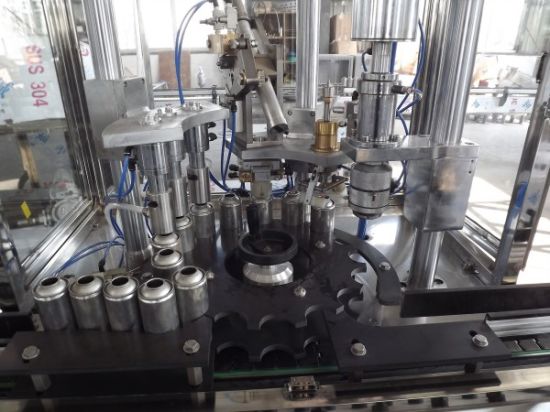

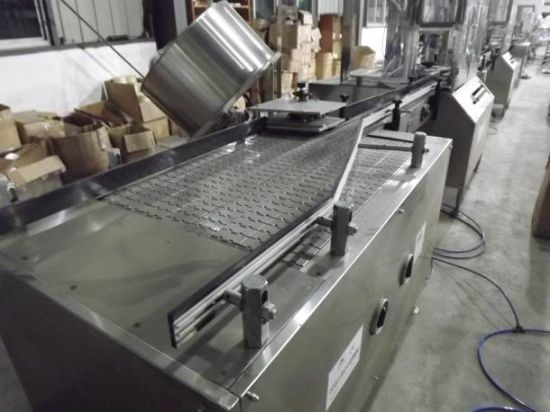

QGQ750 Automatic Aerosol Filling Machine
The automatic line is suitable for all typical aerosol products manufacturing with the feature of fast speed, high automation, intelligent, stable and reliable. And some working stations are optional depending on customer's budget. Main pneumatic parts are international brand such as Feston from Germany, SMC & CKD from Japan, Metalwork from Italy, Siemens from Germany.
Stainless steel 304 working table panel and stainless steel 316 for the parts that touch solvent material, fully pneumatic controlled to be sure no any risk of explosion caused by electrical parts, even motor for the conveyor are explosion proof.
The parts for liquid dosing system and gas metering system are all manufactured by CNC machine, thus high filling accuracy and stable running performance are available.
The line shape can be straight or U shape or even S shape by curve conveyors based on the size of workshop from customer.
The speed of the line is 2400-3600cans/hour depending on the filling volume.
Power supply voltage can be according to customers' actual voltage such as 220V, 380V or 415V etc.
Technical data:
| Liquid filling capacity | 10-250ml per head | |
| Total filling capacity | 10-750ml | |
| Filling variation tolerance | ≤ ± 1% | |
| Liquid filling speed | 40-60cans/min, depending on filling volume | |
| Applicable valve | 1" | |
| Applicable can | height | 70-330mm |
| diameter | 35-70mm | |
| Compressed air consumption | 0.4m3/min at pressure 0.7MPa | |
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
