Suitable substrates: Synthetic fatty acid glycerides / glycerogelatin / polyethylene glycol, etc. Suppositories Shape: Bullet / torpedo / duckbill shape
And other special shapes
Packaging film (PVC, PVC/PE, double aluminum composite film ) rolled through the device into the filling process, the stirring liquid is going through high-precision
Metering pump then automatically is filled into the blank shell to become a suppository particles, according to a preset length, the particles is cut automatically into segments and are fed into the cooling device to cool. In the cooling device, in a certain period of time, making the liquid solidification. The suppository particles into segments by the cooling means ( also after the liquid is solidified ) into sealing stage, while shaping, batch number, and finally further cutting molding.
With wide application, It can fill the substrate with high viscosity and herbal products, with PLC control and man-machine interface, high degree of automation; Precise temperature control; Smooth operation; Large bucket capacity, constant temperature circulating for feeding liquid and automatic liquid surface controlling device guarantee the liquid is not solidified when the machine stop, the materials are stirred in the bucket according to different kinds of substrates, and after filling, the cooling speed is smooth and can be adjusted. If there is the not complete suppository shell, and the unqualified products with filling error will be deleted automatically. The linear line type machine is with more floor space then U type machine.
Production capacity: 6000-12000 pieces/hour( the speed can be adjusted)
Dose per unit: 0.5- 5ml,
Deviation: <± 2%,
3 Filling terminals,

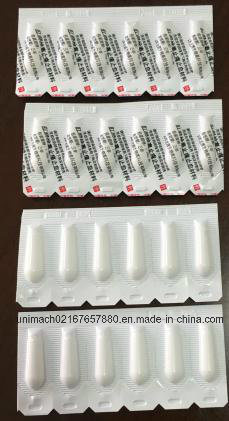

Suppository shape: Bullet, torpedo, duck-mouth etc.
Adapting base material: Emi-synthesis fatty acid, lipo-glycerol, glycerol gelatin, carbowax
Volume of storing vessel: 50L
Air pressure: 0.6Mpa
Air consumption: 1.5m3
Water consumption: 50kg per circle
Total power: 7.5KW
Overall dimension: 5155mm× 1640mm× 1879mm
Total weight: 800kg
1.Nomally shipping steps:
2.Our packing and shipping:
* Inquiry and consulting support.
*Factory inspection available anytime.
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
