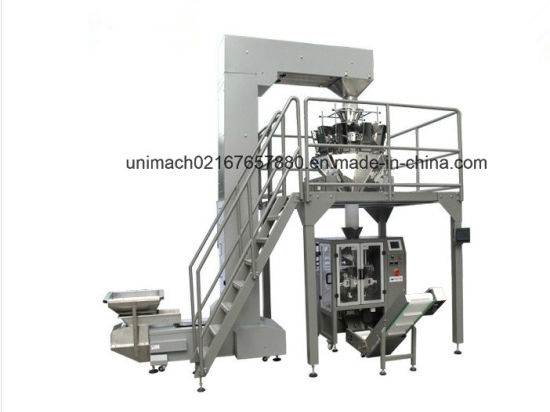

Application:
Automatic packaging of liquid, powder and granule in formed pouch for the food, pharmaceutical, chemical and other industries.
Standard Features:
1. The machine can automatically complete the products measuring, conveying and feeding, filling and bag forming, date code printing, bag sealing and cutting.
2. Servo-motor driven, twin belt bag pulling system.
3. High sensitive fiber optic photo sensor can automatically trace color mark accurately.
4. PLC control system combined with touch screen, can easily set can change the packing parameters. Daily production output and self-diagnostic machine error can be viewed directly from the screen.
5. PID temperature controller monitors heat sealing temperature within ± 1° C.
6. Automatic edge position control assures consistent film alignment during production to produce uniform bag quality.
7. Selected electrical and pneumatic components from reliable international manufacturer.
8. With CE Certificate
Optional Parts for Main Machine:
1. Gusset Pouch forming Device
2. Date Code Printer
3. Sachet header Hole Puncher
4. Fix Number Cut
5. Stainless Steel Machine Out Case
Optional Filling Device:
1. Auger Screw Filler for Powder (Coffee powder, milk powder, sugar powder, fine grain, flour, solid beverage, spice, etc. )
2. Multi-head weigher for granule (tomato chip, candy, chocolate, biscuit, preserved fruit, melon seed, peanut, nutlet, jelly, etc. )
3. Linear Weigher for Granule (sugar, salt, coffee, sesame, condiment, seeds, rice, detergent powder, etc. )
4. Rotary Gear Pump for Liquid (sauce, ketchup, mustard, mayonnaise, cream, cosmetics products, etc. )
5. Piston Pump for Liquid (liquid, cream, shampoo, conditioner, ketchup, etc. )
Model No. | PM-720 | PM-620 | PM-520 | PM-420 |
Max. Measuring Range (ml) | 4000 | 3000 | 2000 | 1000 |
Bag Length (mm) | 200-500 | 120-450 | 80-390 | 80-300 |
Bag Width (mm) | 150-350 | 110-300 | 90-250 | 80-200 |
Film Width(mm) | 320-720 | 240-620 | 200-520 | 160-420 |
Speed (Bag/min) | 10-30 | 10-35 | 15-40 | 15-50 |
Power | 220V/1ph, 3.5Kw | 220V/1ph, 3.2Kw | 220V/1ph, 2.8Kw | 220V/1ph, 2.5Kw |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. Wha's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
