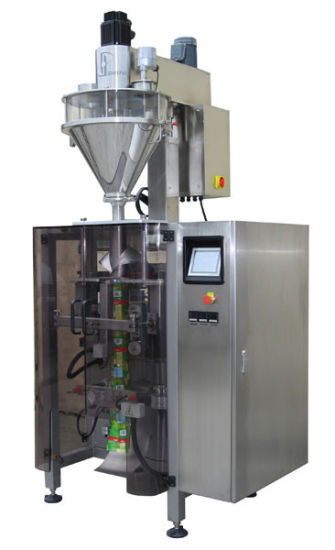

DH-QL-520L High Efficiency Automatic Vertical Packaging machine
Descriptive abstract
This machine completes the whole packing procedure of measuring, loading materials, bagging, date printing, charging (exhausting) and products transporting automatically as well as counting. can be used in powder and granular material. like milk powder, Albumen powder,solid drink, white sugar, dextrose, coffee powder, and so on.
Main features
Friction drive film transport belts.
Belt driving by the servo motor enables resistant, uniform, well-propartioned seals and give great operating flexibility.
The models suitable for the powder packing,it prevent excess cutoff during sealing and limit the occurrence of sealing damage, contributing to a more appealing finish.
Use PLC Servo System and pneumatic control system and super touch screen to form the drive control center; maximize the whole machine's control precision, reliability and intelligentized level.
Touch screen can store the technical parameters of various kinds of products, no need to reset while products changing.
Stainless steel structure,contact parts SS304,some driving parts made of electroplating steel..
Extremely simple and easy to learn programming software. Horizontal jaw obstructiondetection, incorporating instantaneous machine stoppage.
Fully interlock guarding system, film reel runout device. Full synchronisation for printers, labellers and feed systems. Apply CE requirement.
The Model is suitable for Pillow bag, Triangle bag ,Chain bag, Hole bag.
Main Technical Date
| /Dosing mode | /Auger Filler |
| / Bag Sizes | L:100-450mm W 100-300mm |
| /Packing Speed | 10-25 bags/min |
| /Packing Accuracy | 100-500g, ≤±1%; >500g, ≤±0.5% |
| /Power Supply | 3P AC208-415V 50/60Hz |
| /Total Power | 5.4kw |
| /Total Weight | 1050kg |
| / Air Supply | 6kg/m2 , 0.3m3/min |
| /Overall Dimension | 1478×1280×2945mm |
| /Hopper Volume | 65L |
Deploy List
| No. | /Name | /Model Specification | /PRODUCING AREA,Brand |
| 1 | PLC | /FATEK | |
| 2 | /Touch screen | /SCHNEIDER | |
| 3 | /Horizontal Seal Servo System | /PANASONIC | |
| 4 | /Film-dragging Servo System | /PANASONIC | |
| 5 | /Filler Servo System | /TECO | |
| 6 | /Temperature Controller | /Made-in-China | |
| 7 | /Fiber optic sensor | /Keyence | |
| 8 | /Photocell Sensor | /Keyence | |
| 9 | /proximity switch | /Omron | |
| 10 | /Coding machine | /Made-in-China | |
| 11 | /Emergency switch | /Schneider | |
| 12 | /Contactor | /Schneider | |
| 13 | /Circuit breaker | /Schneider | |
| 14 | Air pressure monitoring switch | SMC | |
| 15 | /Electromagnetic Valve | SMC | |
| 16 | /Reducer | /Planet | |
| 17 | /Help traction motor | ZED | |
| 18 | /Correcting deviated motor | ZED | |
| 19 | Level sensor | CR30-15DN | /Korea Autonics |
| 20 | Safety | /Korea Autonics |
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
