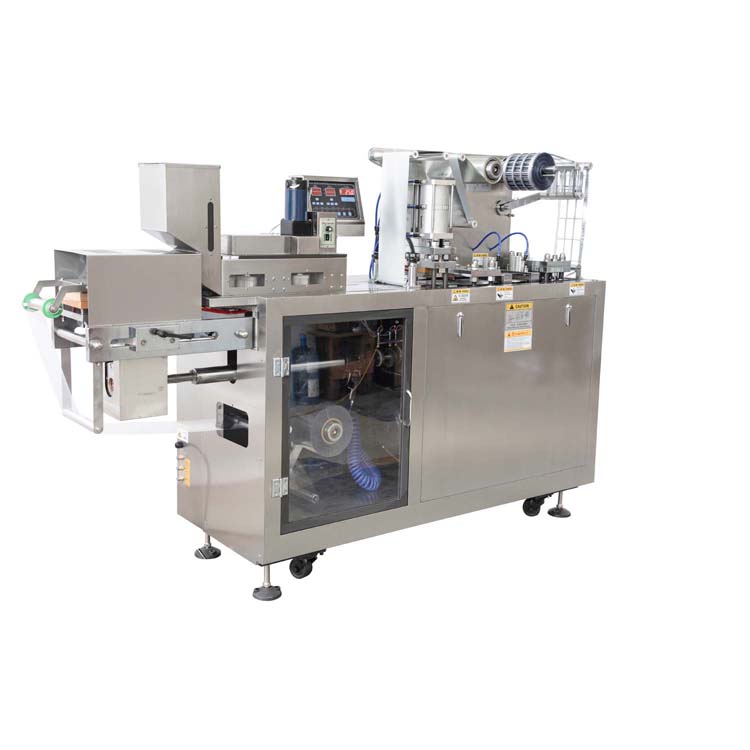

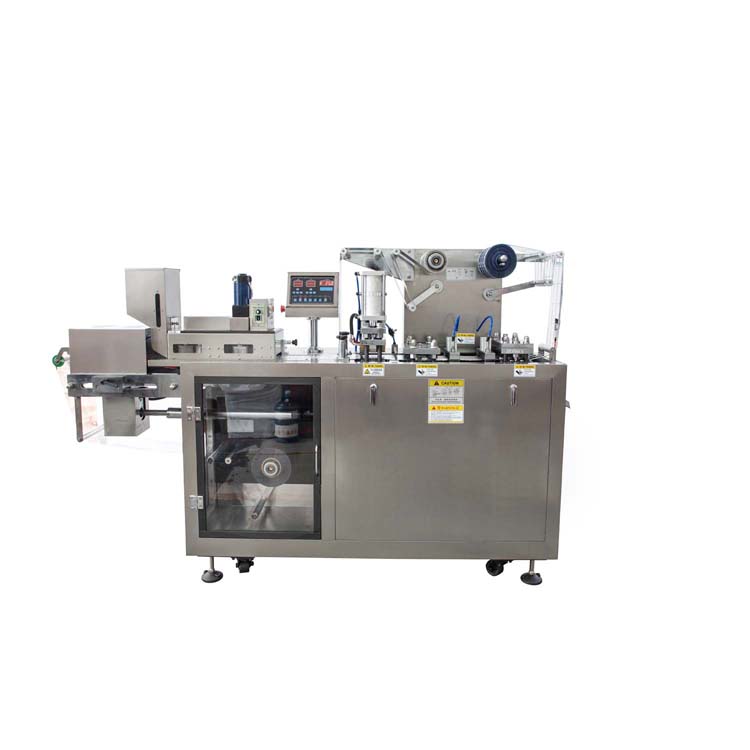

Dpb-150 Automatic Blister Packing Machine



This machine is the latest and high automation product designed for middle and small sized pharmacy factory, healthcare factory and preparation-room of hospital, especially for those who need small batches product but many kinds. The machine is adopted with PLC, frequency converter and touch screen operation. It can automatically finish the processed of feeding, forming, heat-sealing, pressing, batch number printing, punching and so on. It is the ideal packing equipment with convenience operation, full purpose function. The product passed the provincial science and technology appraisal.
It is suitable for capsule, tablet, honey pill, candy, liquid (ointment), syringe as well as irregular shape Al-plastic or paper-plastic packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.
Main transmission part adopts parallel axis and bevel wheel speed reducer, with novel structure, stable running, long longevity and low noise.
Spare parts as heat-sealing station fixing, forming, impressing and cutting etc can move freely to adjust the distance and it is easy to change moulds.
With manipulator towing and adjustable travel range, it can be suited for blister packing of various sizes.
Flat plate structure can pack special shape products, such as: Elliptic shape, square shape, triangle shape, liquid, paste and syringe etc.


· Eye marking sealing device with sensor trace can be added for option.
· Plexiglas Cover can be added for option.

Cutting frequency: 6-50 times/min
Max. Forming area and depth: 130*130*26mm
Travel range: 40-140

Take standard plate 80*57mm as an example:
57mm*2=114mm ≤ 130mm
80mm (between 40mm and 140mm) ≤ 130mm
It will be 2 plates per cut. For capsule, it is around 40 times/min.
It means there will be 4800 plates/h.

Cutting Frequency (Times/min) 6-50
Production Capacity (pcs/h) 20000-110000
Max. Forming Area And Depth (mm) 130×130×26 (Standard Depth 14mm)
Travel  Range  (mm) 40-140 ( Can be lengthened to 160mm according to user's requirements )
Standard Plate (mm) 80×57 ( Can be manufactured as user's requirements )
Air Pressure (Mpa) 0.4-0.6
Air Supply ≥0.2m 3 /min
Total Power 380V/220V   50Hz   3.6KW
Main Motor Power (KW) 0.75
PVC Hard Pieces (mm) 0.15-0.5×140
PTP Aluminum Foil (mm) 0.02-0.035×140
Dialysis Paper (mm) 50-100g×140
Mould Cooling Tap Water Or Circulating Water
Overall Dimensions (mm) 2300×560×1410(L×W×H)
Weight (kg) 750


Packaging & Shipping

 1.Nomally shipping steps:


2.Our packing and shipping:


Our Services


     Pre-Sales Service:


         * Inquiry and consulting support.


         *Quickly reaction.


          *Factory inspection available anytime.



      After-Sales Service:


         *Prompt technical support


        *Engineers available to service machinery overseas


        *Installation &commissioning,good training for customers.



Our customer






Company Information




 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.


Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.


Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.


Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.


Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.


Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
