Working principle
The rolled plastic sheet material (PVC or PVC/PE) is pressed positively to blow and make a statue to take shape, and enter into filling procedure automatically, stirred equally drug fluid is filled to nul nutshell automatically through high precise dosing pump, and is sheared into multi-strip iso-segment. Then it will become solid cork granulation through much time cryo-stereotypia which will realize conversion from fluid to solid. At last, it will be produced to end product suppository by mending form, sealing, beating batch number and shearing working procedure.
Technical feature:
1. Using inset filling, accurate in position, non-dribbling drug, non-hanging wall. High precise in counting.
2. Be wide in suitability, can be used to fill high gluing degree gelatin group and the traditional Chinese medicine ware.
3. Using PLC and touch screen controlled, possessing characteristics of high degree automatization\ convenience in adjustment\ high precise thermo-control\ reliability in action and steady in running etc.
4. Having big volume storing fluid vessel, laying homeothermia\ stirring and fluid surface auto control assembly.
5. Relieving worker's physical labor strength for lower position of filling drug fluid, laying cycling to supply fluid and keeping thermo equipment of channel pathways, and it will ensure drug fluid not be coagulated when machine stop.
6. One side operation and better sight.
Technical specifications
1. Production: 6000- 10000 suppositories per hour
2. Dosage per granulation: 1-5g per granulation(also can be made special qualification)
3. Dosage difference allowed: ± 2%
4. Suppository form: Bullet form. Torpedo form. Duck-mouth form and other special form.
5. Adapting group: Demi-synthesis fatty acid lipo-glycerol. Glycerol gelatin. Polyethylene
Glycol etc.
6. Volume of storing fluid vessel: 50L
7. Height of wadding: 1400mm
8. Electric pressure of power: Three- phases AC 380V
9. Total power: 13KW
10. Air pressure: 0.6MPa
11. Consuming gas tolerance: 1.5m3/min
12. Volume of consuming water: 1000Kg /h(be used in circle)
13. Overall dimensions: 7000× 1500× 1700mm(length× Width× Height)
14. Weight of overall machine: 2000kg

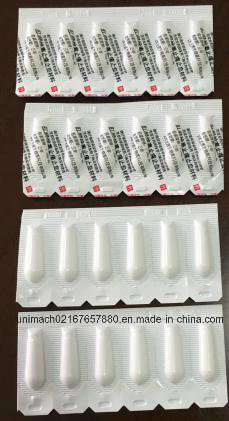

Sample:
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
