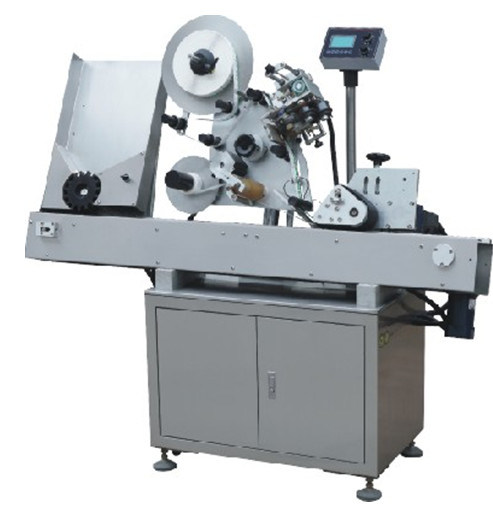

PWM Automatic Horizontal Labeling Machine

Availability:
Quantity:

1. The Scope of Application:

Applicable for round objects with smaller diameter and can not stand when labeling,
Such as ampoule, vials, blood collection tube, pen, sausage and so on.


2. Device Characteristics:

² Adopt mature technology PLC control system, operation is stable and high-speed;

² Using touch-screen control operating system, simple and efficient;

² Advanced technology of pneumatic coding system, print the batch number and expiry date clearly;

² Transmission-type rolling bottles, make sure the labels attached more firmly;

² The damaged rate of bottle is less than 1/200000;

3. Device Advantages:

Ø Imported electric elements, stable performance, low failure rate;

Ø Adopt photoelectric detection, PLC control system, software operation, conveyor belt,
Label accurately with high precision;

Ø No bottle no label, automatic alarm when achieve leakage label.

Ø The whole machine use material S304 stainless steel and anodized senior aluminum alloy.


Model

PWM-A

Capacity (pcs/min)



50-230

Driving Mode

Servo motor

Conveyor Speed(m/min)

≤35

Label Specification

adhesive sticker,transparent or opaque

The application of label object

diameter:12-24mm  Height:25-95mm

The application of label

Height 20-70mm  Length 25-80mm

The inner diameter of label roll

76mm(min)

The outer diameter of label roll

350mm(max)

Printer use air

5kg/cm ²

The power of motor(w)

300W

Voltage

AC220V 50/60HZ Single phase

Size appearance(mm)

1800(L) 700(W) 1270(H)

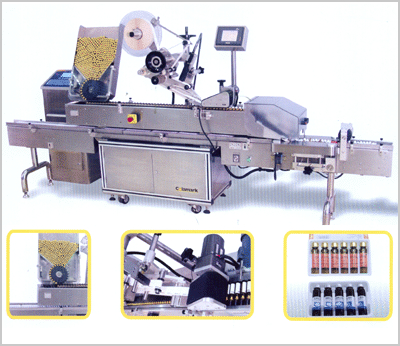

PWM Automatic Horizontal Labeling Machine
PWM Automatic Horizontal Labeling Machine





Packaging & Shipping

 1.Nomally shipping steps:

 S45PNZ%`OL`M6O8H}V(SDJ

2.Our packing and shipping:

(4[KDGL_NF%E6%2]D`4JYP

Our Services

 0OC}YRDYXP])TO]QMXZ48IJ

     Pre-Sales Service:



         * Inquiry and consulting support.



         *Quickly reaction.



          *Factory inspection available anytime.





      After-Sales Service:



         *Prompt technical support



        *Engineers available to service machinery overseas



        *Installation &commissioning,good training for customers.





Our customer

 KE1PX$_SO]LLORZU3`DH8UW



Certifications

[$X~Z{0)[{$PW5F}H666N6M



Company Information

RX2]L7{%NOW0`YXF9~)M{_G



FAQ

 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.


Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.



Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
