Specifications
1. Suitable for all kinds of syringes filling, stoppering, plugging, capping and assembling
2. Speed: 50PCS/min
3. Gel filling

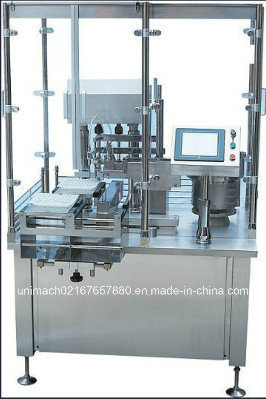

Product Name: Syringe Filling and Capping Monoblock Machine, Syringe Assembly Machine TOSFC-2-2
Description:
The machine is composed of two main devices: Syringe Unscrambler and Filling and Capping Monoblock Machine. It's suitable for all kinds of syringes filling, stoppering, plugging, capping and assembling.
Working principle:
1. Syringes and caps unscramblers: Manually put the Syringes and caps into their vibrators separately. Syringes unscrambled will be delivered onto the conveyor.
2. Conveyor loading station: When the syringes come into filling machine on the conveyor, overturn loading system will send the syringes to rotary working table. -- Eye detecting station: It detects if there are syringes to be filled.
3. No syringes no filling.
4. Filling level positioning station: To push the plunger back at a certain extent in order to leave the space for filling the product into the barrel.
5. Filling station: When the syringes arrive under filling station, filling nozzles will dive into the barrel for filling the product.
6. Cap loading station: Caps will be sorted under vibrator and drop on the mouth of barrel one by one. (if the eyes don't detect the syringes at the beginning, there will be no caps loaded)
7. Cap tightening station: To tighten the caps for syringes under specialized device.
8. Discharging station: Finished products will be pushed out by poking fork and slipped out through the tilted plate.
Technical Parameter:
| Filling volume | 2ml-15ml |
| Speed | ≥ 3000PCS/hour |
| Filling accuracy | ≥ 98-99% |
| Cap loading yield | ≥ 99% |
| Capping yield | ≥ 99% |
| Main power | 1.5KW, 220V/50Hz Single phase, variable speeds |
| Compressed air required | Pressure≥ 5-8Kg/cm2, capacity: 0.22m3/min. P. S. Compressed air must be filted before connecting with the machine. |
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
