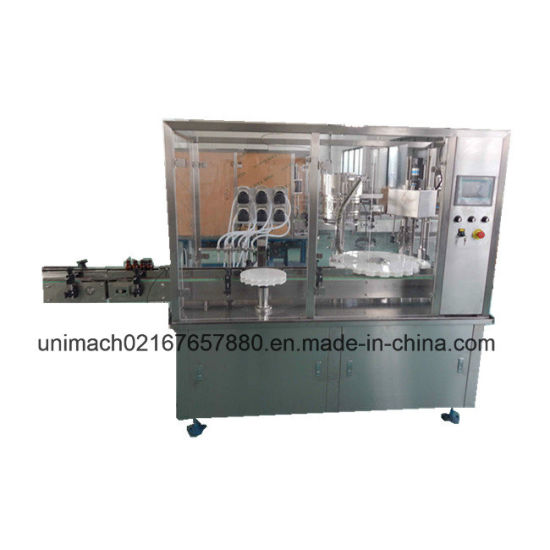

Tbl-80 Glue Labeling and Oral Liquid Machine

Quantity:

Specifications
Glue Labeling Machine
1. Automatic labeling machine
2. PLC control system
3. Suitable for paper label
4. CE Certificate

Glue Labeling Machine
The basic purpose
This glue labeling machine can be used for beer, wine and other glass bottles, PVC or pet bottle glue label; It is easy to operate and to connect to other production lines. Adopting stainless steel materials make the production process more environmental and healthy.
The using of advanced technology makes the labeling machine more effective and accurate.


Application range
1. Applicable label: Paper label (without paste, the paste will daub by the machine).
2. Applicable product: Required to be labeled on the Circumference of surface or other Curved surface.
3. Application industry: Food and beverage, chemical industry, pharmaceutical industry, wine bottles
4. Application examples: Canned food bottles, wine bottles, glass bottles, PVC bottles, vial and other special shaped bottles, according to customer's requirements
Work-in-progress
TBL-60 wet glue labeling machine can be equipped with the production line and can be stand-alone production too. Easy to operate, just turn the power on, gently click the start button, the entire device will enter the production status, the labeling of products via to get bottle, divided bottle, induction start signal, to send front label, to send back label, suction the front label, suction back label, marked on the front label, the back label, and finish the entire production process. Accurate, fast, are the features of this product.

Technical specifications

Length of conveyor 2.4m
Speed of labeling Max. 60bottles/min
Length of label 50-300mm
Width of label 50-110mm
Precision of labeling ± 1mm
Speed control By inverter
Bottle feeding way By screw
Power supply 220V 50Hz~60Hz, single phase
Power consumption 1.7KW
Compressed air 4-6Kg
Dimension 2400× 1300× 1200mm
Weight of machine 500kg


Tbl-80 Glue Labeling and Oral Liquid Machine
Functions and characteristics
1. Easy to operate, the whole process can completed with simple operation.
2. Simple to adjust, particularly applicable to different types of bottles and labels, when change the type of the bottle, just adjust the sidebar, it will be suitable for the bottles with different diameters.
3. Saving glue, the thickness of the glue is adjustable as required, greatly reduce the waste of the glue.
4. With high labeling accuracy, positioning accuracy in the body of the bottle.
5. With high labeling quality, labeling is flat drape without warping, improve the packing grade.
6. With high degree of automation, the paper deliver, gluing, labeling, and fix label are all completed automatically.
7. With wide range of application, can meet the label which diameter ranged from 10mm-120mm, we also provide customization.
8. Easy cleaning, when the parts is required to be cleaned, which is easy to take down.
9. The key part of the machine, all imported products. All of the parts are made of stainless steel and aluminum materials, which meet the manufacturers' requirements because of its novel and beautiful appearance.


Packaging & Shipping

 1.Nomally shipping steps:

 S45PNZ%`OL`M6O8H}V(SDJ

2.Our packing and shipping:

(4[KDGL_NF%E6%2]D`4JYP

Our Services

 0OC}YRDYXP])TO]QMXZ48IJ

     Pre-Sales Service:



         * Inquiry and consulting support.



         *Quickly reaction.



          *Factory inspection available anytime.





      After-Sales Service:



         *Prompt technical support



        *Engineers available to service machinery overseas



        *Installation &commissioning,good training for customers.





Our customer

 KE1PX$_SO]LLORZU3`DH8UW



Certifications

[$X~Z{0)[{$PW5F}H666N6M



Company Information

RX2]L7{%NOW0`YXF9~)M{_G

FAQ

 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.



Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.



Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
