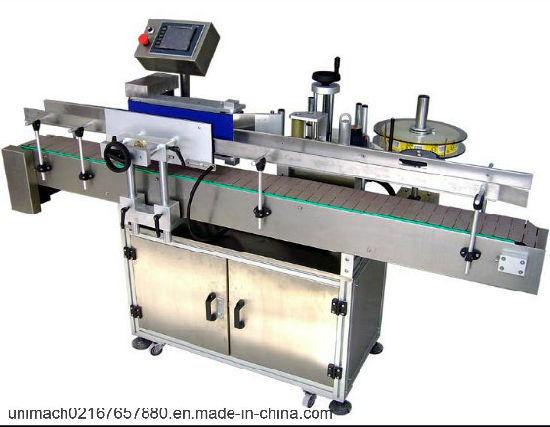

1. The Scope of Application
Labeling differnet size of round objects in food, medicine, daily chemical and other light industrie.
2. Device Characteristic
V Adopt mature technology PLC control system, operation is stable and high-speed;
V Using touch-screen control operating system, simple, practical, efficient;
V Upgraded disc label station design, can label conical and flask bottle;
V Screw adjustment suppressing mechanism suppress bottle move accurately;
V Synchronization chain mechanism ensure labeling smooth.
V Advanced technology of pneumatic coding system, print the batch number and expiry date clearly;
V Transmission-type roll bottle device, make sure the label attached on the bottle more firmly;
3. Device Advantages
Ø Imported electric elements, stable performance, low failure rate;
Ø Adopt photoelectric detection, PLC control system, software operation, conveyor belt, labeling accurately with high precision;
Ø Can be operated alone or contract with the production line;
Ø No bottle not labeling, automatic alarm when achieve leakage label.
Ø The whole machine use material of S304 stainless steel and anodized senior aluminum alloy, with high corrosion resistance and never rust;
Model | PLM-A |
Driving Mode | Servo motor |
Operating direction | Left or Right |
Labeling Accuracy | ±1.0 mm(subject to the roughness of the plane) |
Production(bottle/min) | 60-150(according to the size of bottle and label) |
Labeling Speed(m/min) | ≤40 |
Label Specifications | adhesive sticker,transparent or opaque |
The application of bottle | Outer diameter 40-100mm Height 35-200mm |
The application of label | Height 20-140mm ; Length 23-280mm |
The inner diameter of label roll | 76mm |
| The outer diameter of label roll | 350mm (max) |
The power of motor(w) | 550W |
Voltage | AC220V 50/60HZ Single phase |
Size appearance(mm) | 1800(L) 700(W) 1270(H)mm |
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
