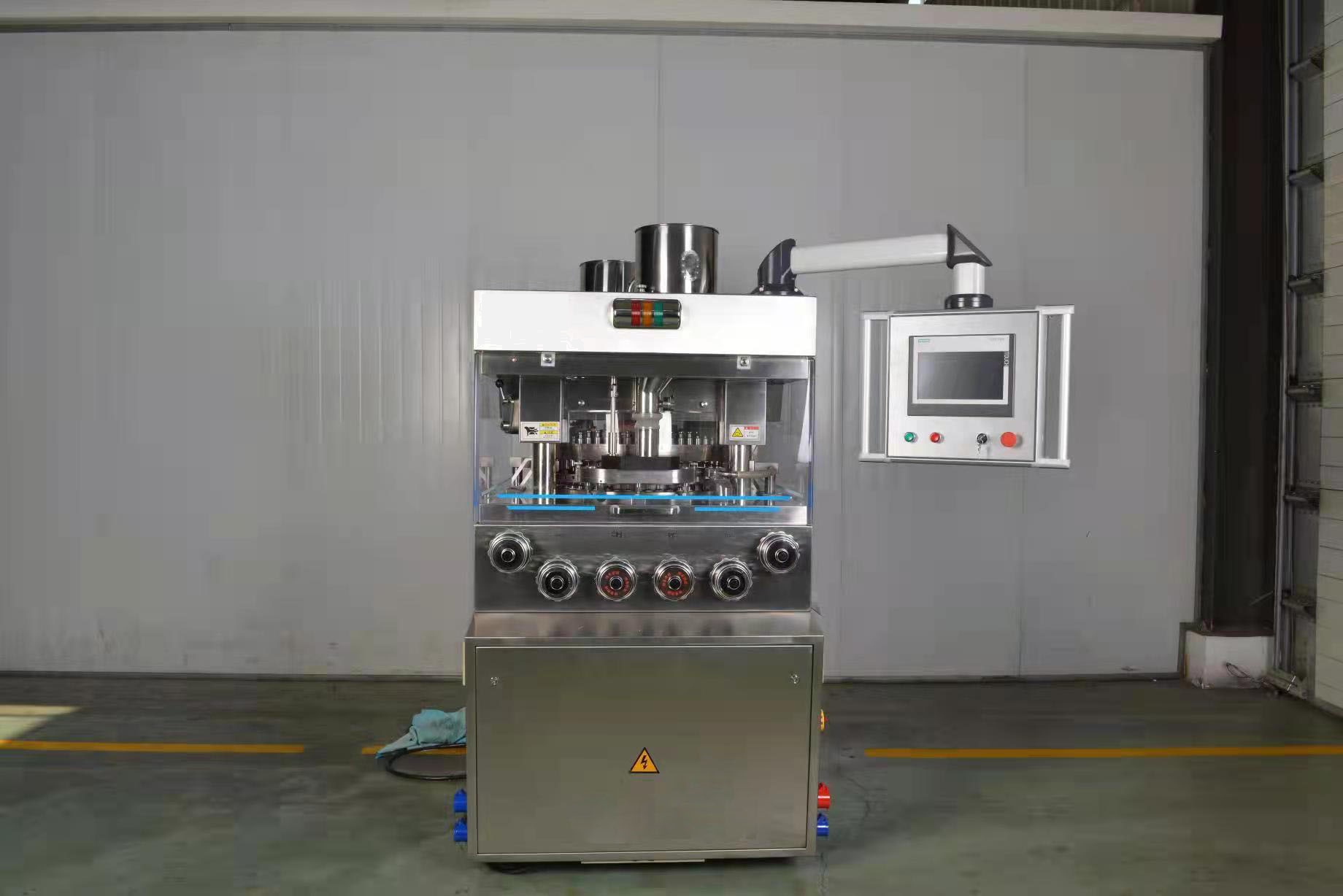

ZP-55A UPDATE AND SUB-SPEED ROTARY TABLET PRESS

ZP-55A upgraded sub high speed rotary tablet press is a new generation of sub high speed tablet press and an upgraded version of sub high speed tablet press. With more than 50 years of tablet press manufacturing experience and modern design concept, the equipment is suitable for large- scale and intensive tablet production, and can press round and special-shaped tablets of various specifications. This series of sub high speed rotary tablet press has the advantages of high output, continuous and adjustable preloading, compact structure, simple operation and maintenance, wide application range of materials and low operation cost.
Availability:
Quantity:
  • zp-55
  • HAIBI


ZP-55A UPDATE AND SUB-SPEED ROTARY TABLET PRESS


ZP-55-1

Main Application


ZP-55A upgraded sub high speed rotary tablet press is a new generation of sub high speed tablet press and an upgraded version of sub high speed tablet press. With more than 50 years of tablet press manufacturing experience and modern design concept, the equipment is suitable for large- scale and intensive tablet production, and can press round and special-shaped tablets of various specifications. This series of sub high speed rotary tablet press has the advantages of high output, continuous and adjustable preloading, compact structure, simple operation and maintenance, wide application range of materials and low operation cost.


Characteristics

●The machine is compatible with the GMP requivement.

●The high production fficiency could satisfy the demands of large batch production.

●It' s equpped with forced feeding device, various forms of impellors could satisfy demands of different materials to ensure the feeding precision.

●High pressure, the pre-pressure is consecutively adjustable, which extends the pressing duration. The machine runs smoothly and could press the materials difficult to mould.

●The tablet pressing chamber is dead angle free for 360* , special nstallation means are adopted for the tablet discharging mechanism, the under guide track and under roller, it" s convenient to operate, dismantle and clean.

●The special oil-resistant and dustproof system has avoided punching blockage and has increased the damp structure.

●An independent view window with high definition is designed for the machine.

●Controlled by PLC and man-machine interface, and it' s simple to operate and intuitionistic.



Technical Parameters

Model

ZP55A

ZP51A

ZP41A

Die model

ZP type

I series B type

|Series D Type

Number of dies

55 sets

51 sets

41 sets

Max output

300,000 tablets/h

275,000 tablets/h

160,000 tablets/h

Max.tablet diameter

Ф13mm

(irregular 16mm )

Ф19mm

Ф25mm

Max fling depth

18mm

Tablet thickness

8mm

Max main pressure

120kN

Max pre pressure

30kN

Turret speed

45r/min

45r/min

32.5r/min

Motor power

7.5kW

Overall size

1250x 1120 x 1980mm

Machine weight

2800kg

More detials:

ZP-2-1ZP-3-1

Packaging & Shipping

 1.Nomally shipping steps:

 S45PNZ%`OL`M6O8H}V(SDJ

2.Our packing and shipping:

(4[KDGL_NF%E6%2]D`4JYP

Our Services

 0OC}YRDYXP])TO]QMXZ48IJ

     Pre-Sales Service:



         * Inquiry and consulting support.



         *Quickly reaction.



          *Factory inspection available anytime.





      After-Sales Service:



         *Prompt technical support



        *Engineers available to service machinery overseas



        *Installation &commissioning,good training for customers.





Our customer

 KE1PX$_SO]LLORZU3`DH8UW



Certifications

[$X~Z{0)[{$PW5F}H666N6M



Company Information

RX2]L7{%NOW0`YXF9~)M{_G


FAQ

 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.



Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.



Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
