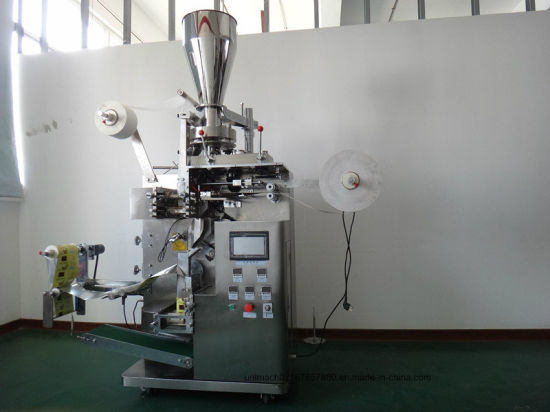

ZR-169 Automatic inner and outer tea bag packing machine
ZR-169 Automatic inner and outer tea bag packing machine
1. APPLICATIONS:
The machine is suitable for the dual bag packing of small grain-like materials, such as tea leafs, medicinal tea and healthy tea.
2. FEATURES:

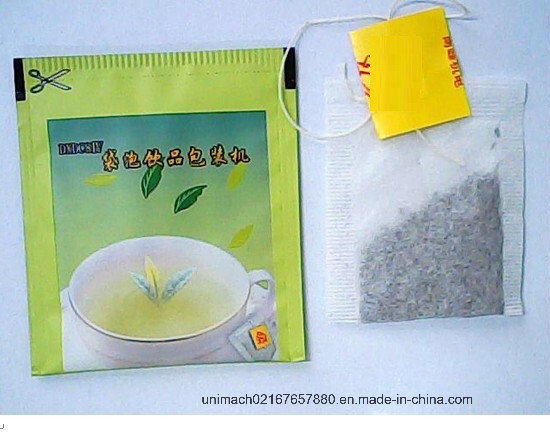

AUTOMATIC TEA-BAG PACKING MACHINE WITH THREAD,TAG AND ENVELOPE is a hot-sealed, automatic and multifunction packing equipment ,The main characteristic of this equipment is it can molding in one time to protect the material from the direct contact with workers' hands and improve the efficiency. The inner bag is filter paper with thread and label automatically is available. The outer bag is composite paper (including various kinds of composite membrane hot sealable such as paper/plastic, plastic/plastic, plastic/aluminum/plastic, paper/aluminum/plastic.)The most advantage is, the capacity, the inner bag and outer bag can be adjuster flexibly, and the size of the inner and outer bag also can be adjuster according to the requirement of the customer to get the perfect effect.
3.TECHNICAL SPECIFICATIONS:
Filling Range | 1-15(g) |
Sealing | 3 side |
Capacity | 30-40(bags/min) |
Inner bag size | W: 50-75(mm) L: 50-75(mm) |
Outer bag size | W: 75-95(mm) L: 85-120(mm) |
Tag size | W: 25mm L: 25mm |
Thread length | 155mm |
Total power | 220V/50HZ,single phase /3.7KW |
Dimension(L*W*H) | 1050*700*1300(mm) |
Packing dimension | 1460*960*1880(mm) |
Net weight | 650KG |
Gross weight | 700KG |
PLC:Japan Omron,
Touch screen:Taiwan Weinview
The machine with outlet conveyor
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
