Dxd Multi-Heads Vertical Packing Machine

Quantity:
Dxd Multi-Heads Vertical Packing Machine

Dxd Multi-Heads Vertical Packing Machine





Main feature:

1) Import PLC contorl syetem, simple-operating, visual touch screw.
2) Servo film feeding system, correct register sealing and cutting positions adopt automatic correction device, high automation.
3 Intelligent temperature controller is used, correct temperature control, ensure nice, smooth seal.
4) Perfect automatic alarming protective function, reduce the consumption up to the lowest.
5) When the machine is combined with metering equipments, full packaging process including automatic feeding, metering, bag filling, date printing and automatic counting is completed.
6) Type of bag making: Can be coustomerd, like: Pillow bags, punched hanging bags.
Application:

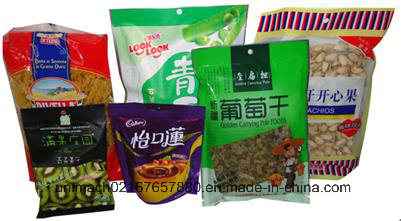

Suitable for automatic packaging particle materials like all kinds of food, potato chips, shrimp, sweets, chocolate, biscuits, peanuts, nuts, rice, grain, seeds, pistachio, coffee, beans, lima beans, jelly, frozen food, chicken essence, suger, salt, etc.
Automatic weighting packing machine DXD-420C DXD-520C DXD-620C
Packing speed (s/min) 15-70bags/min 15-70bags/min 15-60bags/min
Bag-making size (mm) (L)80-300mm(W)80-200mm (L)80-350mm(W)80-250mm (L)80-400mm(W)80-280mm
Filling range (g) 10-2000g 10-3000g 50-5000g
Packing meterials OPP/CPP PET/PE PET-AL/PE etc. OPP/CPP PET/PE PET-AL/PE etc. OPP/CPP PET/PE PET-AL/PE etc.
Film width (mm) 180-420mm 180-520mm 180-600mm
Film thickness 0.04-0.08mm 0.04-0.08mm 0.04-0.10mm
Air consumption 0.36m3/min 0.6Mpa 0.36m3/min 0.6Mpa 0.6m3/min 0.6Mpa
Power supply AC220V/380V 50/60Hz 3.5KW AC220V/380V 50/60Hz 3.5KW AC220V/380V 50/60Hz 4.5KW
Machine dimension (mm) L*W*H=1750*1050*1500-2000 L*W*H=1750*1350*1650-2000 L*W*H=2150*1400*1750-2000
Machine weight (kg) 500Kg 650kg 800kg


Packaging & Shipping

 1.Nomally shipping steps:

 S45PNZ%`OL`M6O8H}V(SDJ

2.Our packing and shipping:

(4[KDGL_NF%E6%2]D`4JYP

Our Services

 0OC}YRDYXP])TO]QMXZ48IJ

     Pre-Sales Service:



         * Inquiry and consulting support.



         *Quickly reaction.



          *Factory inspection available anytime.





      After-Sales Service:



         *Prompt technical support



        *Engineers available to service machinery overseas



        *Installation &commissioning,good training for customers.





Our customer

 KE1PX$_SO]LLORZU3`DH8UW



Certifications

[$X~Z{0)[{$PW5F}H666N6M



Company Information

RX2]L7{%NOW0`YXF9~)M{_G

FAQ

 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.



Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.



Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
