TS8-200-L Automatic Pouch Rotary Packing Machine

Application Area:
This line mainly installs rotary packing machine and liquid filling machine, suitable for packing all kinds of liquid, such as fruit juice, hand sanitizer, liquid detergent and so on.
TS8-200-L:
Availability:
Quantity:
  • TS8-200-L

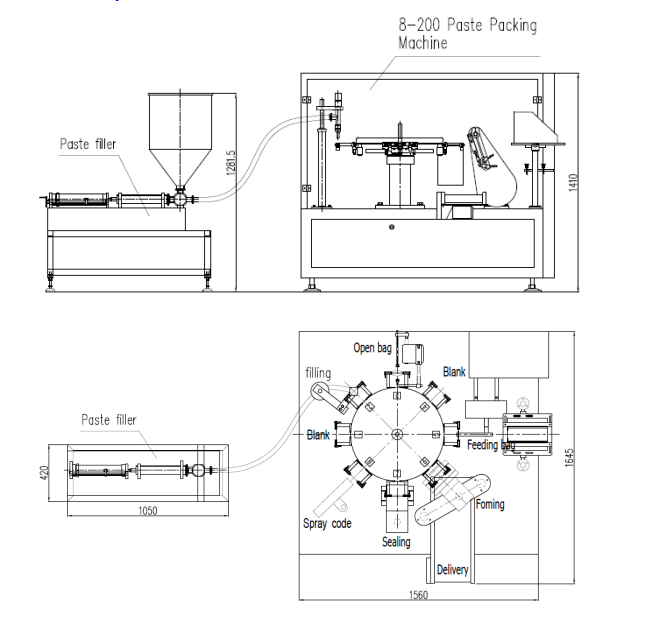

1. TS8-200-L Pouch rotary packing machine



Sample:


9_副本

6


 秤1






Working Cycle:

1. Giving Bag

2. Blank

3. Open Bag

4. Filling1

5. Blank

6. Spray Code

7. Sealing 1

8. Sealing 2



Application Area:

This line mainly installs rotary packing machine and liquid filling machine, suitable for packing all kinds of liquid, such as fruit juice, hand sanitizer, liquid detergent and so on.

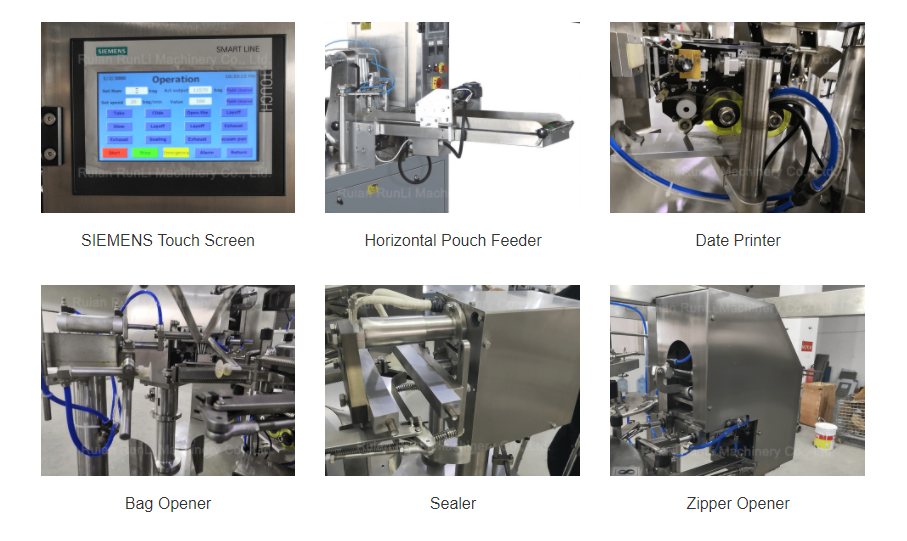

Main Features:

1. Wide range of pouches: All kinds of pre-made pouches such as flat and stand-up pouches (with/without zip).

2. Easy to operate: PLC and color panel, fault indication on the panel.

3. Easy to adjust: Needs 10 minutes to adjust clamp to suitable for different pouches.

4. Frequency control: Speed can be adjusted by frequency conversion within the range.

5. No pouch/incorrect pouch opening-no fill-no seal, machine alarm.

6. Machine alarm and stop when the inadequate air pressure.

7. Hygienic construction, the product contact parts are adopted sus304 stainless steel.

8. Imported engineering plastic bearings, no need to oil, no contamination.

9. Oil-free vacuum pump, avoid the pollution of the production environmental.



Main technical parameters:

Model

TS8-200-L

Packing Speed

10-35bags/min (Depended on the product and filling weight)

Bag Size

W: 100-200mm   L: 150-300mm

Bag Types

All kinds of compound bags, such as flat bag, 3-side sealing bag,

4-side sealing bag, zipper bag, standup bag etc…

Filling Range

5-1500g

Total Power

2.6KW

Overall Dimensions

3100*1800*1450

Weight

1300kg
