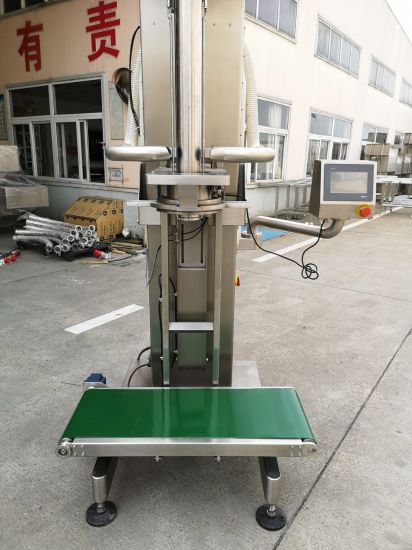

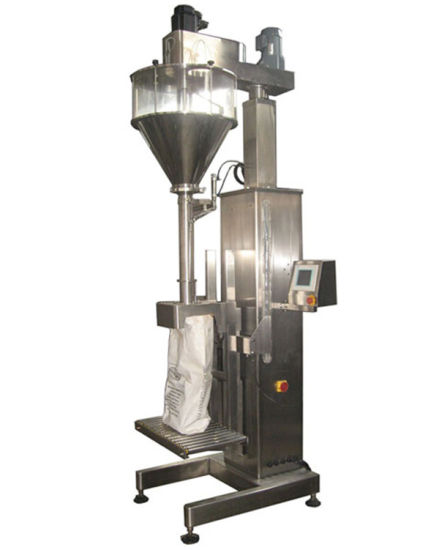

Big Bag Powder Filling Machine (DCS-5 SERIES)
Descriptive abstract
This model is designed mainly for the fine powder which easily to spout dust and high-accuracy packing requirement. Based on the feedback sign given by below weight sensor, this machine do measuring, two-filling, and up-down work, etc. It is specially suitable for filling additives, carbon powder, dry powder of fire extinguisher, and other fine powder which needs high packing accuracy.
Main features
Weight sensor is below the tray, to do fast filling and slow filling based on the pre-set weight, to guarantee the high packaging accuracy.
Servo motor does up-down work driving with tray together, the up-down rate can be set randomly, no dust spouts out when filling.
With servo motor and servo drive controlled auger, perform stably, and with high accuracy.
PLC control, touch screen display, easy to operate.
Made of stainless steel, combined hopper, easily to be cleaned.
With handwheel to adjust the height, easy to fill many kinds of weight.
With fixed screw installation, the material quality won't be effected.
Process: Put bag/can(container) on the machine container raise fast filling, container declines weight reaches the pre-set number slow filling weight reaches the goal number take the container away manuallyNote: The pneumatic bag-clamp
Equipment and can-hold set is optional, they are suitable for can or bag filling separately.
Model | DCS-5B-1 | DCS-5B-2 |
Packing Weight | 100g-10kg | 1kg-50kg |
Packing Accuracy | 100-1000g, ≤±2g; ≥1000g, ≤±0.1-0.2% | 1 - 20kg, ≤±0.1-0.2%, >20kg, ≤±0.05-0.1% |
Packing Speed | 5 - 30 times per min | 2 - 25 time per min |
Power Supply | 3P AC208 - 415V 50/60Hz | 3P AC208 - 415V 50/60Hz |
Total Power | 2.7 Kw | 3.2 Kw |
Total Weight | 350kg | 500kg |
Overall Dimension | 1030×850×2400mm | 1130×950×2800mm |
Hopper Volume | 70 L | 100 L |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
