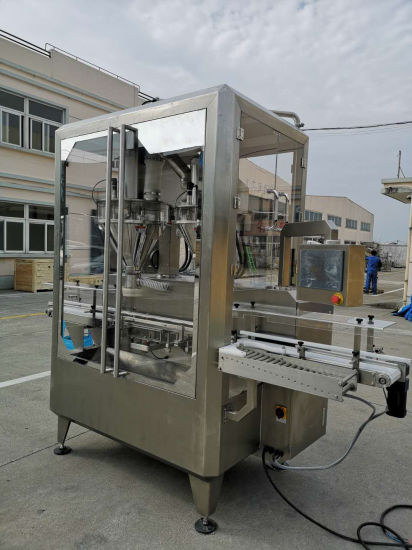

DQ-3 Automatic 100 - 2000g Dual filler filling with online weighing milk Protein powder filling machine (1 line 2fillers
This series machine is a new-designed that we make it on placing the old Turnplate Feeding on one side. Dual auger filling within one line main-assist fillers and the originated Feeding system can keep the high-precision and take off the tiring cleaning of the turntable. It can do the accurate weighing & filling work, and also could combined with other machines to buildup a whole can-packing production line. This machine could be used in filling milk powder, albumen powder, condiment, dextrose, rice flour, cocoa powder, solid drink, and so on.
One line dual fillers, Main & Assist filling to keep work in high-precision.
Can-up and horizontal transmitting is controlled by servo and pneumatic system, be more accurate, more speed.
Servo motor and servo driver control the screw, keep stable and accurate
Stainless steel structure, Split hopper with polishing inner-out make it to cleaned easily.
PLC & touch screen make it be easy of operation.
Fast-respond weighing system make the strongpoint to real
The handwheel make the exchange of different filings to be easily.
Dust-collecting cover meet the pipeline and protect environment to pollution.
Horizontal straight design make the machine in little area
Settled screw setup make no metal pollution in producing
Process: can-into → can-up → vibration → filling → vibration → vibration → weighing & tracing → reinforce → weight checking → Can-out
With whole system central control system.
Main Technical Data
|Dosing mode|| |
Dual filler filling with online weighing
|Filling Weight||100 - 2000g|
|Container Size||Φ60-135mm; H 60-260mm|
|Filling Accuracy||100-500g, ≤±1g; ≥500g,≤±2g|
|Filling Speed|| |
Above 50 cans/min(#502),Above 60 cans/min(#300 ~ #401)
|Power Supply||3P AC208-415V 50/60Hz|
|Total Power||3.4 kw|
|Air Supply||6kg/cm 0.2cbm/min|
|Hopper Volume||50L(Main) 25L (Assist)|
1.Nomally shipping steps:
2.Our packing and shipping:
* Inquiry and consulting support.
*Factory inspection available anytime.
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
