GS-16

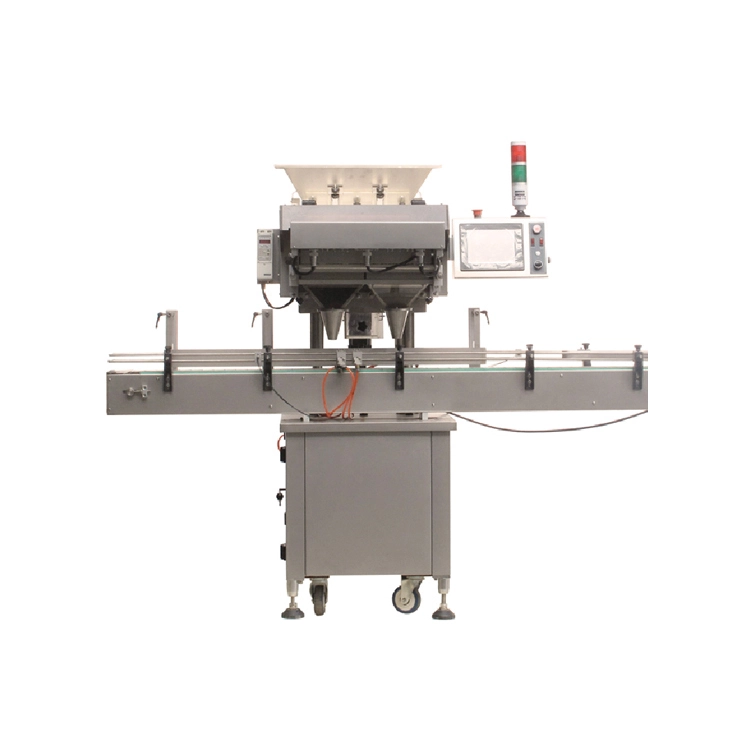

GS-16 Economic Automatic Counting Machine Capsule Counter Line
This high-speed tablet and capsule counter combines 16-channel counting heads over a dual-track conveyor on a single frame to double the throughput without doubling the floor space, achieving speeds up to 60 cpm based on 100-count bottles. The machine handles a wide variety of tablets, caplets and both hard and soft capsules of different shapes, sizes and properties.
Key Features:
Speeds up to 60 cpm based on 100-count bottles with vibration system
Counter discrepancies is less than 1‰
Operation stable and lower noise
Bottle convey smoothly with dual-track conveyor
full-set protecting device keep operation steady and reliable
Touch screen Control System which is easy to control
Simple Straight Forward Operator Controls
On-Screen trouble description which is easy to solve
Stainless Frame
Technical Parameter:
Counting& Filling Speed | 6000 pieces/minutes (Max) |
Channel | 16 |
Diameter of bottle | 30~100mm (Customizable) |
Diameter of bottleneck | Twice over tablet diameter or capsule length |
Height of bottle | 50~200mm (Customizable) |
Applicable objects | 0~5# hard/soft capsules, φ5~20mm tablets |
Dimensions | 1800mm×1500mm×1800 mm ( L × W × H ) |
Electrical Requirements | 1.8kW, 220/110v, 50-60HZ（Optional） |
Weight | 800kg |
Error rate | ≤1‰ |
Air supply pressure | 0.7MPa |
Working direction | Left → Right (or Right → Left) |
More pictures
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
