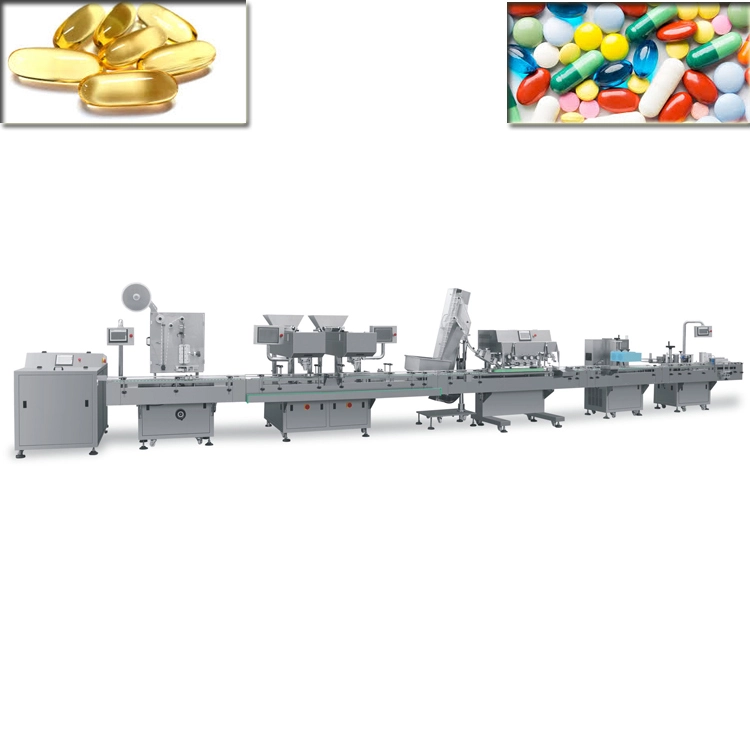

Counting Line Bottle Full Automatic Counting Bottling Machine Line Counting And Bottle Filling Machine

Performance characteristics:

1. Strong full line compatibility: The photoelectric technology adopts our company's anti high dust technology, which is fully compatible with solid preparations or solid particles such as tablets (including shaped tablets), capsules, soft capsules (transparent, opaque) pills, etc. (such as candies, nuts, candies, etc.).

2. High degree of intelligence: Each single machine is equipped with a Chinese English dialogue control panel. Multiple self check alarm functions, good linkage throughout the line, and smooth operation.

3. High efficiency: From an operational perspective, it is easy to operate, adjust, clean, maintain, and has low operating and maintenance costs. The number of operators is only about three.

4. Small footprint (less than 30 square meters of interior space) and low energy consumption.

5. Adopting a human-machine interface control panel (touch screen), the control system adopts a branded PLC.

    oops...!

    no product data.

    Go to homepage
    Trademark
    SUPM
    Name
    Automatic drug counting and filling machine

     Counting Line Bottle Full Automatic Counting Bottling Machine Line Counting And Bottle Filling Machine


    B-14

    (1) HBL-150 high-speed bottle unscrambler

    B-1

    1. Working principle


    After pouring the bottles into the bottle bin of the bottle unscrambler, the lifting mechanism will automatically send them to the unscrambler bin. Through the unscrambled flower plate and automatic bottle reversing mechanism, the messy bottles are sorted according to the law of the bottle mouth facing upward, and they are neatly arranged on the conveyor line to enter. In the next process.



    Technical parameters:

    No

    Item

    parameter

    1

    Maximum production capacity

    150 bottles/min

    2

    Bottle specifications

    15–250 ml

    3

    Voltage frequency

    AC220V /50-60 Hz

    4

    Total power

    0.3KW

    5

    Air pressure

    0.3–0.6 Mpa

    6

    Dimensions (length × width × height)

    1065×1600×1260 mm

    7

    weight

    300 kg

    (2) HBZ-150 high-speed plug desiccant machine

    B-3

    1. Performance principle:

    Introduce the reel-type strip desiccant into the servo feeding mechanism, detect the color mark on the desiccant through the color mark photoelectric, control the servo positioning position and cut the desiccant at the same time, put the cut desiccant into the bottle, and put the stopper The bottles of good desiccant are transported to the next process.


    Technical parameters and specifications:

    No

    Project

    parameter

    1

    Maximum production capacity

    120 bottles/min

    2

    Bottle specifications

    Diameter 30-120mm, height 30-200mm

    3

    Voltage frequency

    220V/50Hz

    4

    power

    0.55KW

    5

    Gas consumption

    0.18m3/h

    6

    Dimensions (length×width×height)

    1200×600×1500mm

    7

    weight

    120 kg

    (3) HBC-16  multi-track electronic pellet counting machine


    B-4

    1. Working principle:

    Pour the medicine pellets into the top hopper when working, and adjust the primary, intermediate and final stage vibrating feeders appropriately, so that the piled medicine pellets in the hopper will gradually slide along the vibrating groove plate into a continuous strip and slide down to the discharge opening. . Then, the drop detection channel is used for each drop detection channel, using the principle of photoelectric effect to input the working signal generated by the infrared dynamic scanning sensor when the drug drop is falling to the FPGA high-speed microprocessor, and the counting function is realized through the cooperation of the circuit and the program.

    The independent vibration system and the integrated photoelectric counting device are used to solve the phenomenon that other domestic manufacturers have one less bottle in the first bottle and one more bottle in the second bottle due to uneven drug drop.


    Technical parameters:

    project

    Specific parameters

    Remarks

    Steady speed

    12,000 capsules /min

    Bottling speed is related to medicines and packaging materials

    Single bottle quantity

    11000 capsules


    Drug specifications

    Thickness: 310mm Diameter: 313mm Length: 321mm

    Pills, tablets, soft and hard capsules and other solid particles

    Medicine bottle specifications

    Diameter: 20100mm Height: 40240mm


    power supply

    AC220V 50/60HZ




    power

    3.2KW


    Air pressure

    0.50.7Mpa


    Air consumption

    200L/min clean air


    Dimensions

    approximately1980mm(L)×1580mm(W)×1740mm (H)


    weight

    Approximately  800kg


     (4) HBX-200 high-speed capping machine

    B-5

    1. Working principle:

    The bottle clamping mechanism clamps the bottle body from the previous process and transports it to the bottle cap station, and then each bottle automatically wraps a bottle cap and brings it to the capping wheel station, and then tightens the cap through 4 sets of capping wheels.

    Technical parameters and specifications:

    Serial number

    project

    parameter

    1

    Maximum production capacity

    200 bottles/min

    2

    Bottle specifications

    15500ml

    3

    Voltage frequency

    AC220V/50Hz

    4

    power

    0.85KW

    5

    Dimensions (length×width×height)

    2600×700×1900mm

    6

    weight

    720 kg

    (5) TBF-01B Aluminum Foil Sealing Machine

    1. Performance characteristics:

    B-6

    (1) This machine uses non-contact electromagnetic induction heating to fuse the aluminum foil in the bottle with the bottle mouth to achieve the purpose of sealing.

    (2) This machine has complete functions to ensure that the finished product rate of the aluminum foil sealing port reaches 100%, and has a counting and non-aluminum foil rejection device.

    (3) Adopting domestic advanced inverter theory and modularized control of electrical appliances; and adopting a closed feed-back main circuit with good stability.

    (4) Adjust the current and voltage according to the output, which can effectively control the sealing time and sealing speed.


    Technical parameters:

    No

    project

    parameter

    1

    Maximum production capacity

    150 bottles/min

    2

    Bottle specifications

    15250ml

    3

    Cap diameter

    15-55mm

    4

    Bottle height

    35-300mm

    5

    Voltage frequency

    AC220V/50Hz

    6

    power

    2KW

    7

    Dimensions (length×width×height)

    1700×880×1120mm

    8

    weight

    96 kg

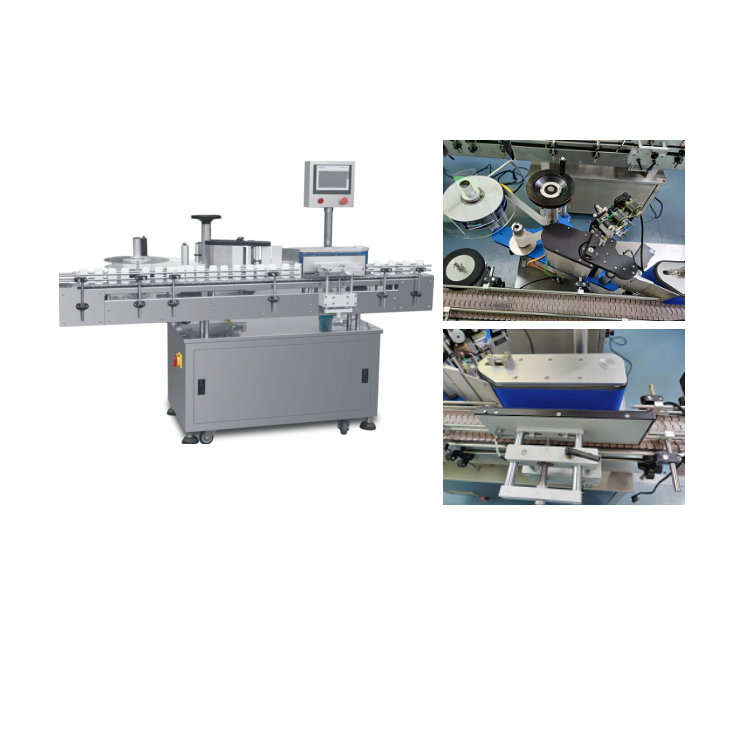

     (6) TB-200 high-speed self-adhesive labeling machine


    B-7

    1. Working principle:

    The bottles from the previous process pass through the bottle separating wheel to separate the bottles so that each bottle will automatically send out a label after photoelectric induction. At the same time, the batch number and production date are automatically printed. The label is smoothly glued to the bottle through the bottle roller mechanism. Bottle body.


     Technical parameters:

    Serial number

    project

    parameter

    1

    Maximum production capacity

    180 bottles/min (according to label length)

    2

    Label length

    25240mm

    3

    Label width

    2570mm

    4

    Bottle specifications

    15250ml

    5

    Bottle height

    30-150mm

    6

    Voltage frequency

    AC220V/50Hz

    7

    power

    2KW

    8

    Dimensions

    1940×900×1000mm

    9

    weight

    222KG

    (7) Automatic sleeve shrinking labeling machine

    B-8
