Vials High Speed Filling Capping Machine with Stopper
The eyedrop filling line uses vacuum negative pressure and self-priming filling equipment for containers, which are suitable for small caliber containers. The expansion stress of the liquid surface within the caliber should be greater than the hydrostatic pressure, such as eyedrops, eyedrops, oral liquid plastic bottles, essential balm bottles, perfume bottles, etc. This assembly line adopts a conical piston with good sealing performance, accurate dispensing volume, convenient adjustment of liquid volume, adjustable filling speed, and simple operation. It can be widely used in industries such as medicine, healthcare, and chemical engineering.

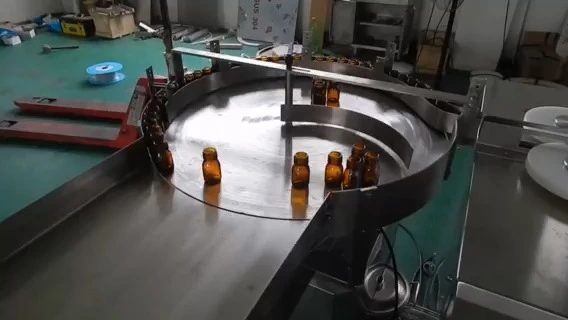

This machine is composed of turn table, bottle transfer channel, the machine order the bottle in one line, and delivery it to the washing machine. This machine can store the bottle, buffering the bottle, and change the bottle flow direction.
Technical parameters:
application: round bottle that can stand on the table steady
turn table dia. : φ900
transfer capability : comply with the washing machine
power supply: 220V 50HZ
power: 0.12KW
outside dimension: 950×1400×950
M ain component
the table, and surrounding plate is imported good quality SUS 304/2B
regulating motor: Shanghai
B utton: Schneider
2, liquid filling and plugging machine (optional for customers with hundred-level laminar flow hood)
Main components:
8 sets of high-precision peristaltic pump filling; 1 set of plug sorting machine; 2 sets of plug feeding mechanism; 2 sets of plugging mechanism, 1 set of bottle feeding and conveying mechanism.
Main technical features:
⑴ Adopting high-precision cam indexing gap mechanism, equal-division tray bottle feeding mechanism, high positioning accuracy, simple and reliable structure.
⑵Photoelectric detection function: The machine can be plugged when there is a bottle, and if there is no bottle, it will not be plugged;
⑶Automatic shutdown protection function for no bottles and inverted bottles: When there is a shortage of bottles or inverted bottles during work, the host will be stopped and not plugged when detected by the electric eye, which plays a protective role.
The main technical parameters:
4.1 Applicable specifications: 50-500ml (processed according to the packaging materials provided by the customer)
4.2 Production capacity: 3000~5000 bottles/hour (the host is subject to 100ml)
4.3 Power supply: 380V 50Hz
4.4 Total power: ≈4.5 kW
4.5 Compressed air: 0.3MPa～0.4MPa
4.7 Measuring accuracy: ±1-2%
4.8 Filling method: Peristaltic pump filling
4.9 Plugging method: Electromagnetic oscillation plugging
4.10 Number of plugs: 2
4.11 Bottle in and out method: conveyor belt
4.12 Plugging rate: ≥98%
4.13 Total weight of the machine: about 950 kg
4.14 Dimensions: 2500×900×1850mm
3 automatic capping and capping machine (optional for customers with hundred-level laminar flow hood)
Main components:
1 set of cap sorting machine; 2 sets of cap feeding mechanism; 2 sets of capping mechanism, 1 set of bottle feeding and conveying mechanism.
Main technical features:
⑴ Adopting high-precision cam indexing gap mechanism, equal-division tray bottle feeding mechanism, high positioning accuracy, simple and reliable structure.
⑵Photoelectric detection function: This machine can realize the hook cap when there is a bottle, and the cap does not hook when there is no bottle;
⑶Automatic shutdown protection function for no bottles and inverted bottles: the host will be stopped when the electric eye detects the lack of bottles or inverted bottles during work, which plays a protective role.
The main technical parameters:
4.1 Applicable specifications: 50-500ml (processed according to the packaging materials provided by the customer)
4.2 Production capacity: 3000~5000 bottles/hour (the host is subject to 100ml)
4.3 Power supply: 380V 50Hz
4.4 Total power: ≈1.8 kW
4.9 Upper cover method: Electromagnetic oscillation upper cover
4.10 Number of lock cap heads: 2 heads
4.11 Bottle in and out method: conveyor belt
4.12 Covering rate: ≥98%
4.13 Covering rate: ≥98%
4.14 Total weight of the machine: about 600 kg
4.15 Dimensions: 2500×900 (total width 1480)×1850mm

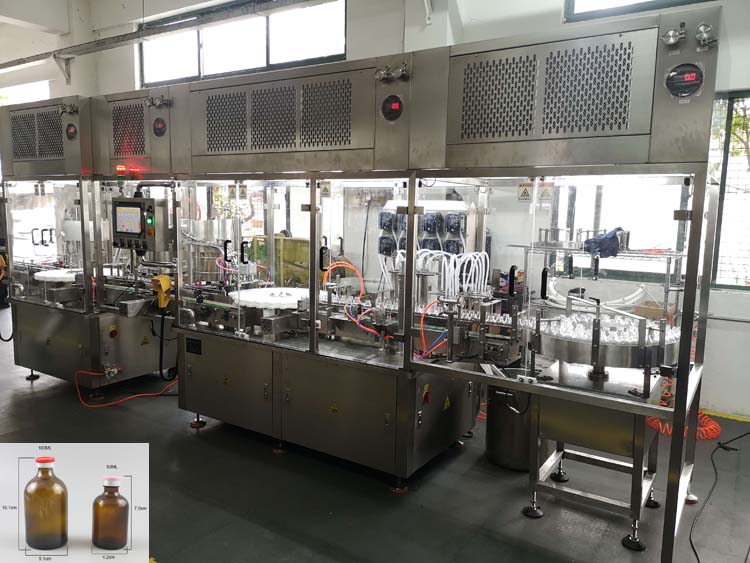

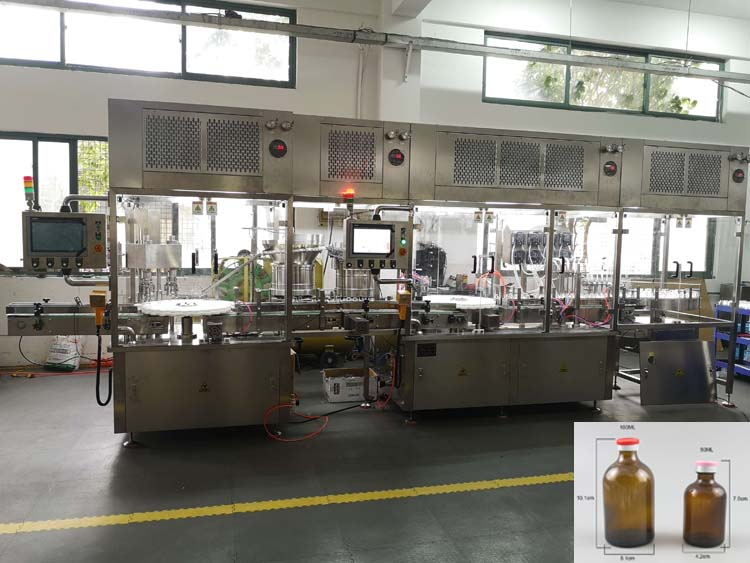

Photos of machine:
![(4[KDGL_NF%E6%2]D`4JYP](https://img.yfisher.com/m0/1717651589586-.png)
![0OC}YRDYXP])TO]QMXZ48IJ](https://img.yfisher.com/m0/1717651508426-.png)
![RX2]L7{%NOW0`YXF9~)M{_G](https://img.yfisher.com/m5591/1716965152cefe3a.jpg)
