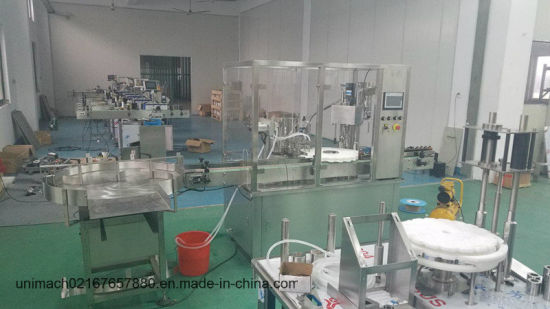

HB100-200ml Filling and stoppering machine
Technical parameter and main component
1.Bottle feeding machine
This machine is composed of turn table, bottle transfer channel, the machine order the bottle in one line, and delivery it to the washing machine. This machine can store the bottle, buffering the bottle, and change the bottle flow direction.
application: round bottle that can stand on the table steady
turntable dia. : φ900
transfer capability : comply with the washing machine
power supply: 220V 50HZ
power: 0.12KW
outside dimension: 950×1400×950
main component:the table, and surrounding plate is imported good quality SUS 304/2B
regulating motor: Linwan,Shanghai
button: Schneider
2.Filling and stoppering machine
Integrated the filling and stoppering machine in one compact machine, it can finish the following procedure automatically , filling , stopper arranging, stopper putting, and stopper pressing, bottle out feeding, etc. the machine running smoothly, and stable function, accurate filling, and comply with GMP.
Yield capacity: 20-30pcs/min
Filling station: 2
Filling range: 100-200ml
filling tolerance :±1%
Capping station: ONE
Qualified cap putting: more or equal then 98%
Qualified capping: more or equal then 98%
Speed regulation: by inverter
power supply: 380V 50Hz
power: 1.8kw
outside dimension: 2440×1270×1550
Main configuration:
the talbe and surrounding plate, and the part contacted with the bottle is imported good quality SUS 304/2B, the part contacted with liquid is 316L
Filling needle: 316L
Filling pump: Peristaltic pump
Inverter: Japan mitsubishi
Button: Schneider
Air switch: Schneider
AC contactor: Schneider
Speed reducer: goldgun, shanghai
Cam index: shangdong
The main motor:ABB
PLC: Siemens
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
