1. Host characteristics:

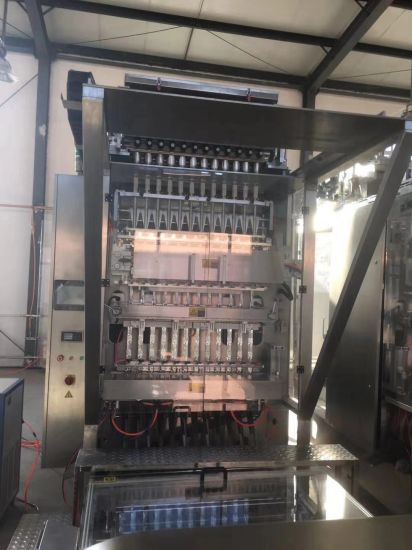

Multi-column back closure DXDK320 is an automatic packaging machine that's a production of high-quality and high performance through introducing advance foreign technology. Its functions include automatic feeding, , metering, bagging, filling, sealing, printing date, products output and a series of automatic functions. This machine adopts high-precision electrical transport film system, PLC system control, advanced human-machine interface touch, photoelectric automatic tracking, PID digital temperature control system which makes the whole operation more simple and perfect, it's the perfected equipment that can improve producting in food and pharmaceutical packaging sectors and reducing labor intensity and improve the grade of package.
The device can be applied into bag packaging through cold-rolled composite aluminum, multi-layered composite film and plastic film. With multi-channel and swinging filling device can fill bags continuously, and at the same time cut out of single or multiple packages.
2. Technical specifications:
Main technical specifications

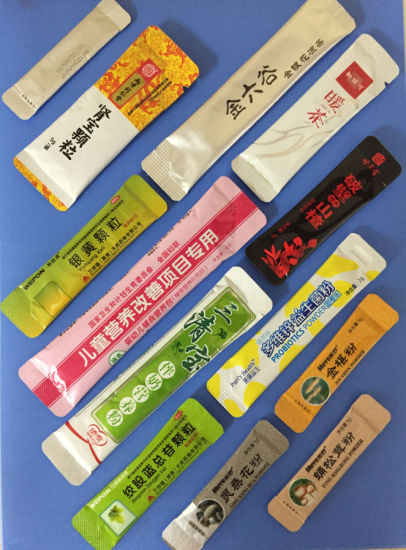

It's widely used in food, medicine and chemical product that are in the loose, non-sticky granolas, such as drugs granular, instant coffee, MSG, sugar, desiccant and so on it can also be used for power, liquid and viscous liquid packaging.
Packaging features include automatic feeding, metering, bagging, filling, and sealing, printing date, output and a series of automatic functions. With feeder of this machine changed greatly, instead of single material, this machine adopts different materials on different feeder, so as to meet the needs of different users.
The largest width of packing400mm
Cutting numbers (vertical rows)3- 5 lines
Packing materialsnylon membrane / polyester composite film, polyester film / polyester composite membrane, nylon membrane pure aluminum foil / polyester film composite, polyester film / aluminum foil composite pure polyester film and sealing of other available together functional composite materials. (packaging materials can not be flammable, explosive, perishable, such as the inclusion of hazardous chemicals or substances, materials) Maximum width of bag material: 350mm; Package build the largest diameter: φ 280mm;
Packet core diameter material: φ 75mm; Package thickness: 0.05-0.1 mm
|The passing rate % ||99.9% |
|Power supply specifications220V ||220V 50Hz |
|The total power consumption (kw) ||3.2kw |
|Compressed air pressure (Mpa) ||0.6 Mpa |
|Overall dimension (L * W * H) ||1.2mX1.2mX2.4m |
|Compressed air consumption ||(m3 / h)2 m3 / h |
Noise (dBA)78dB (A)
Cross-cut frequency (times / min)
Up to 50 times / minute, according to the requirements can be carried out without the use of class (set) adjustment.
Automatic control capacity of Production filling materials, wood tension, sealing temperature, cutting speed, tangential control, stepless speed regulation
GMP standardsJB/T20056-2005 medical sealed bags filled molding machine;
3. The working principle and process
Packaging materials are released export volume institutions that are at the back of the body. After the release of roller the print of volume batch, longitudinal, forming and sealing are finished. Meanwhile materials are filled and sealing process is done, and then through horizontal closure, cross-cutting, the formation of products is complete.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
