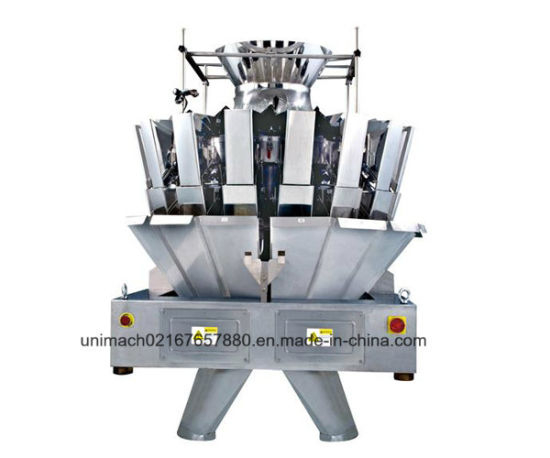

1. Application:
It is suitable for weighing of small granule materials such as candy, seed, pistachio nuts, almond and raisin etc.
2. Features:
* One plus two timing hopper function can reject overweight combination, and handle the discharge signal from two VFFS machines simultaneously;
* No products Auto pause function can improve stability and accuracy;
* Clean function can make all the hoppers open, which make it more convenient for daily washing down work.
* The single linear feeder amplitude can be auto/manual adjusted, which ensure the products flow smoothly with high accuaracy
* Adjustable opening angle of step motor based on the characteristic of products gurantee high speed and high accuracy weighing.
* Digital load cell with high accuracy, Multilanguage control panel, Spanish, Korea, German, French and Arabic, etc are available.
* IP65 waterproof and dustproof design, which is easy to clean and maintain;
* Realize high-speed weighing small bags with space save.
| Model | DWC-16 | |
| Max.Single Dump Cap.(g) | 10-300g | |
| Weighing Accuracy (g) | 01.-1.5g | |
| Max.Weighing Speed | 120bags/min | |
| Hopper Volume | 1600ml | |
| Control Panel | 8.4"LCD Keypad Screen/ Touch Screen | |
| Options | Dimple Plate/Timing Hopper/Printer/Rotary Top Cone | |
| Driving System | Step Motor | |
| Power Requirements | 220V / 1000W / 50/60HZ /8A | |
| Packing Dimension(mm) | 1680(L)x1182(W)x1268(H)mm | |
| Gross WGT | 850KG | |
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
