APPLICATION
QVC Series Pneumatic vacuum loader is widely used in automatic feeding material forTablet Press, pulverizer, capsule filling machine, vibration sifter, packing machine, Mixer and etc. It doesn't need any mechanical vacuum pump, so it is simple structure, Small volume, without repairing, no noise and easy being controlled. It can be stopped separating layer for the feeding material because the machine has high vacuum. QVC Series Pneumatic Vacuum Conveyer was designed according to international standard. It is easy cleaned and beautiful. It is up to GMP requirement.
CHARACTERISTIC:
Solve the problem thoroughly about the separating layer of material.
The sintered-metal filter is Japanese original.
It can be removed the material static electricity.
It is airtight without crossed contamination.
It is made in good quality stainless steel(304 or 316L).
It is made in non-toxic and corrosion resistant material.
Filter is easy cleaned.
It is controlled intelligently and automatically.
It is easy dismantled with building blocks structure.
It is easy set up and small volume, the weight is light
It is no noise and screening
It is economical and practical the cost is lower.

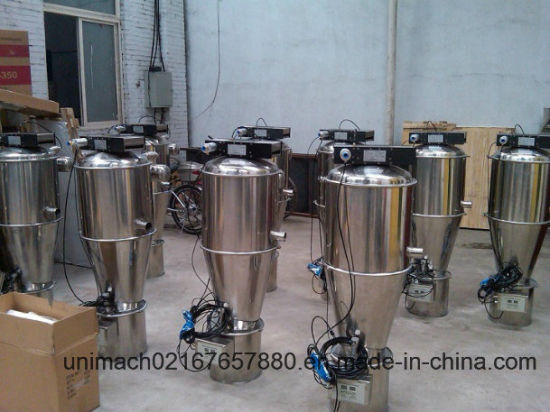

Pictures for QVC-4 pneumatic vacuum loader
Technical parameters:
Model | Capacity(kg/h) | Compressed Air(L/min) | MPa |
QVC-1 | 350 | 180 | 0.4-0.6 |
QVC-2 | 700 | 360 | 0.4-0.6 |
QVC-3 | 1050 | 540 | 0.4-0.6 |
QVC-4 | 1500 | 720 | 0.4-0.6 |
QVC-5 | 3000 | 1440 | 0.4-0.6 |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
