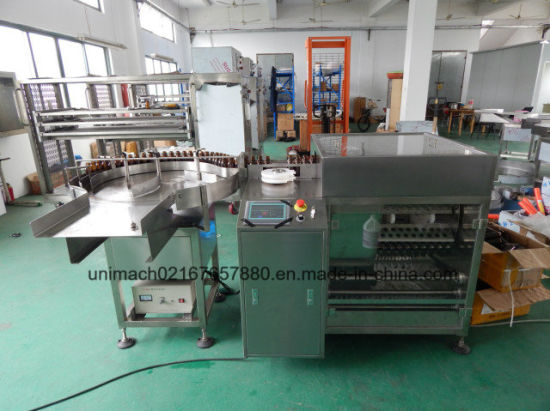

Main application:
This machine is mainly used for washing of ampoules in pharmaceutical factories, it also can be used for washing glass containers such as vials and liquid oral bottles
Characteristic
1. Vertical rotation structure, which can be used for washing procedure of ampoule, vial and oral liquid.
2. Ultrasonic washing and washing by alternant jetting water and airflow, which can also save energy.
3. Three washing medium all adopt separate needle, avoids crossing pollution.
4. Needles are inserted into bottles for filling, without water and air pressure loss. It can save energy, have no washing dead space, and can improve clarity of washing.
Type | Suitable sizes | Output | Water consumption | Air consumption | Power | Net weight | Overall dimensions |
QCL168 | 1-20ml ampoules, 5-50ml oral liquid, 2-20ml vials | 28000-46000 pcs/h | 0.2-0.3Mpa 1.4m 3 /h | 0.6Mpa 70 m 3 /h | 25kw | 3000kg | 2530×2850×1540mm |
QCL140 | 20000-39000 pcs/h | 0.2-0.3Mpa 1.2m 3 /h | 0.6Mpa 60 m 3 /h | 25kw | 3000kg | 2530×2850×1540mm | |
QCL112 | 10000-32000 pcs/h | 0.2-0.3Mpa 1.0m 3 /h | 0.6Mpa 50 m 3 /h | 25kw | 3000kg | 2530×2850×1540mm | |
QCL120 | 10000-34000 pcs/h | 0.2-0.3Mpa 1.0m 3 /h | 0.6Mpa 50 m 3 /h | 15.7kw | 2400kg | 2400×2400×1300mm | |
QCL100 | 6000-29000 pcs/h | 0.2-0.3Mpa 0.9m 3 /h | 0.6Mpa 40 m 3 /h | 15.7kw | 2400kg | 2400×2400×1300mm | |
QCL80 | 6000-24000 pcs/h | 0.2-0.3Mpa 0.8m 3 /h | 0.6Mpa 30 m 3 /h | 15.7kw | 2400kg | 2400×2400×1300mm | |
QCL60A | 6000-18000 pcs/h | 0.2-0.3Mpa 0.6m 3 /h | 0.6Mpa 23 m 3 /h | 15.7kw | 2200kg | 2400×2400×1300mm | |
QCL40A | 6000-12000 pcs/h | 0.2-0.3Mpa 0.6m 3 /h | 0.6Mpa 20 m 3 /h | 15.7kw | 1900kg |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
