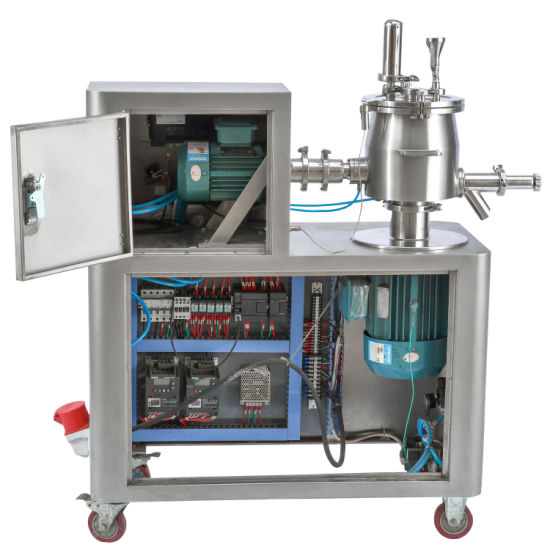

400L High Rapid Shear Mixer Granulator Machinery


400L High Rapid Shear Mixer Granulator Machinery

Applied in industries such as pharmaceutical, chemical as well as food industry and etc, more exactly shown as follow: Mixing of powder and powder, Granulation of powder and bond.

Products Characteristics:

1. Adopt PLC and touch screen automatic control technology, the machine can get assured of stability in quality, as well as easy manual operation for convenience of technological parameter and flow progress.
2. Adopt inverter to control the stirring blade and cutter, easy to control the size of particle.
3. With the rotating shaft hermetically filled with air, it can prevent all dust from compact.
4. With a structure of conical hopper tank, all material can be in uniform rotation. The tank is laid with an interlayer on the bottom, in which water cooling circulation system featuring higher thermostatic performance than air cooling system is furnished, which leads to improve the quality of particles.
5. With automatic lifting of the bowl cover, the tank outlet matching with drying device, self-equipped arm-ladder, it is easy to operate.
6. Mouth of material outlet has changed Into arc-shaped, avoiding up dead spaces.

Working Principle:

1. The process consists of two procedures including mixing and granulating.
2. Powder metrical can be charged into the material pan from the conical hopper and continue to rotate in the container under the action of mixing blade once the hoper is closed. In the meanwhile, all materials grow up the shape of liquid bridge under continuous effects of conical tank wall. Under the action of extrusion, friction as well as crumb by blade and conical tank wall, all material is gradually turn for loosen. At last, while opening the hoper outlet, waterish particles are pushed off under the centrifugal effects of blade.
3. These soft particles are formed not dependent on forced extrusion effects, more exactly; Mainly these small and uniform particles are formed after continuous cutting under the simile-liquid state. In all, this machine can realize the mutual transformation between different materials.

Technical specifications
Total capacity 400L
Working capacity 100-280L
Material groove max.
lnside diameter
Material feeding capacity 50-140kg
Stirring paddle rotary speed 20-200r.p.m
Cutting knife rotary speed 50-3000r.p.m
Length 2500mm
Total Height 2320mm
Height of outlet 1000mm
Width 2050mm
Weight 1500kg
Standard configuration list for 400L rapid mixer granulator
No. Name and specs Origin Qty
1 Stirring motor  Power:22kw Wannan 1 set
2 Granulating motor  Power:7.5kw Wannan 1 set
3 inverter (Vector V2, three phase) Power: 22KW JAPAN YASKAWA 1 set
4 inverter (Vector, three phase)
Power: 7.5KW
5 Stir mixing paddle bearing NSK (Japan) 3 sets
6 Granulating knife bearing USA 2 sets
7 Pneumatic components AirTAC (Taiwan) 2 sets
8 Sealing gasket for bowl cover Shanghai 1 set
9 Stirring paddle(36°, Z-type) SUS 304 or (SUS316L option) 1 set
10 Granulating knife(chopper) SUS 304 or (SUS316L option) 6 sets
11 Sealing gasket Caisheng (Taiwan) 4 sets
12 PLC German Siemens 1 set
13 Touch screen DELTA (Taiwan) 1 set
14 Switch power supply Mingwei 1 set
15 Outside stainless steel plate (1mm, 1.5mm, 2mm) SUS304 (Zhangjiagang) 1 set
16 Material contact part SUS304,SUS316L(Kunshan)
as option

17 Operating platform SUS 304
18 Cleaning spray nozzle SUS304 (SUS316L option) 1 set

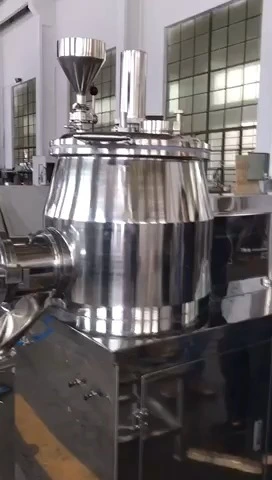

400L High Rapid Shear Mixer Granulator Machinery

400L High Rapid Shear Mixer Granulator Machinery

Packaging & Shipping

 1.Nomally shipping steps:


2.Our packing and shipping:


Our Services


     Pre-Sales Service:


         * Inquiry and consulting support.


         *Quickly reaction.


          *Factory inspection available anytime.



      After-Sales Service:


         *Prompt technical support


        *Engineers available to service machinery overseas


        *Installation &commissioning,good training for customers.



Our customer






Company Information



 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.


Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.


Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.


Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.


Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.


Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
