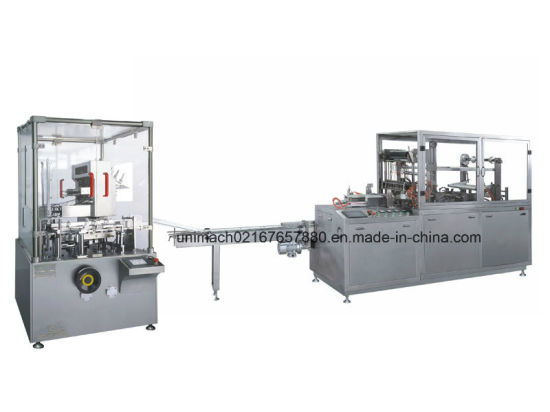

Automatic High Speed Translucent Film Packing Cartoning Machine

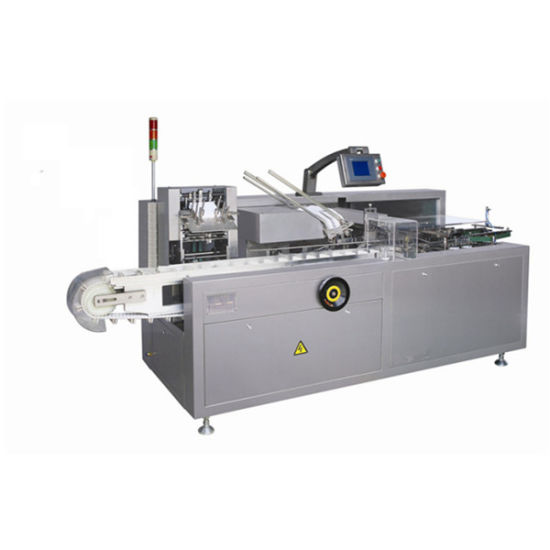

Automatic cartoning machine
Automatic Cartoning is suitable for blister cartoning, bottle, pouchs and
Injection, medicine, cosmetis, condom. Food., tube, ointment, wrapped products. The machine finished running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes 1to 4folds leaflet automatic folding, cantons in suction and open, products and leaflet put into, printing batch number, sealing or option hot-glue device. The machine can be single used or linked with Filling Machine, Blister Packing Machine, Shrink Machine, Three Dimensional Packaging Machine to form a production chain.
Feature
1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2. Adopt human-machine operation system.
3. Automatically displaying device for trouble, speed and finished products counting.
4. Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.
5. No products not suction leaflet, no leaflet not suction carton.
6. Automatic detection and rejection device for lacking blister goods and leaflets.
7. Protecting automatically for overloading.
8. Stable performance, operation is easy.
TMP-300D/400DTri-dimension Cellophane Packing Machine
Instruction:
Tri-dimension Wrapping Machine is specially R&D to outside decoration packaging of square-shaped and box. The packing machine is widely applied in many industries, such as Pharmaceutical, Food, Daily chemistry, Cosmetics, Publishing industry, IT etc. It can used to pack the material, such as medicine box, Gum, Health products, Tea-leaf, Cubic-sugar, Disk, condom, Cigarette, tape, Poker, Soap, Square-shape battery, and etc.
Main Feature:
Compact structure, stable performance, easy to operation and maintenance.
PLC control, easy to operate
Touch screen and friendly interface.
The data are showed on touch screen.
Auto feeding device and Auto counter.
Multifunction diagnose software, provide friendly and powerful help.
High grade security protect device, protect the safety of machine and operator.
Special design, save cost.
High precision transducer, stepless variable speed.
| Main technical parameters | ||
| Encasing speed | 30-100 boxes/min | |
| Box | Quality requirement | 250-350g/m 2 |
| Dimension rangeL×W×H | (65-180)mm×(30-85)mm×(15-50)mm | |
| Quality requirement | 60-70g/m 2 | |
| Leaflet | Unfolded leaflet specificationL×W | (80-250)mm×(90-170)mm |
| Folded leaflet specification1-4 | (90-170)mm×(25-40)mm | |
| Compressed air | Working pressure | 0.6Mpa |
| Air consumption | 120-160L/min | |
| Power | 220V/50Hz | |
| Motor power | 0.75kw | |
| Machine dimension(L×W×H) | 3100mm×1100mm×1800mm | |
| Machine weight | 1400kg | |
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
