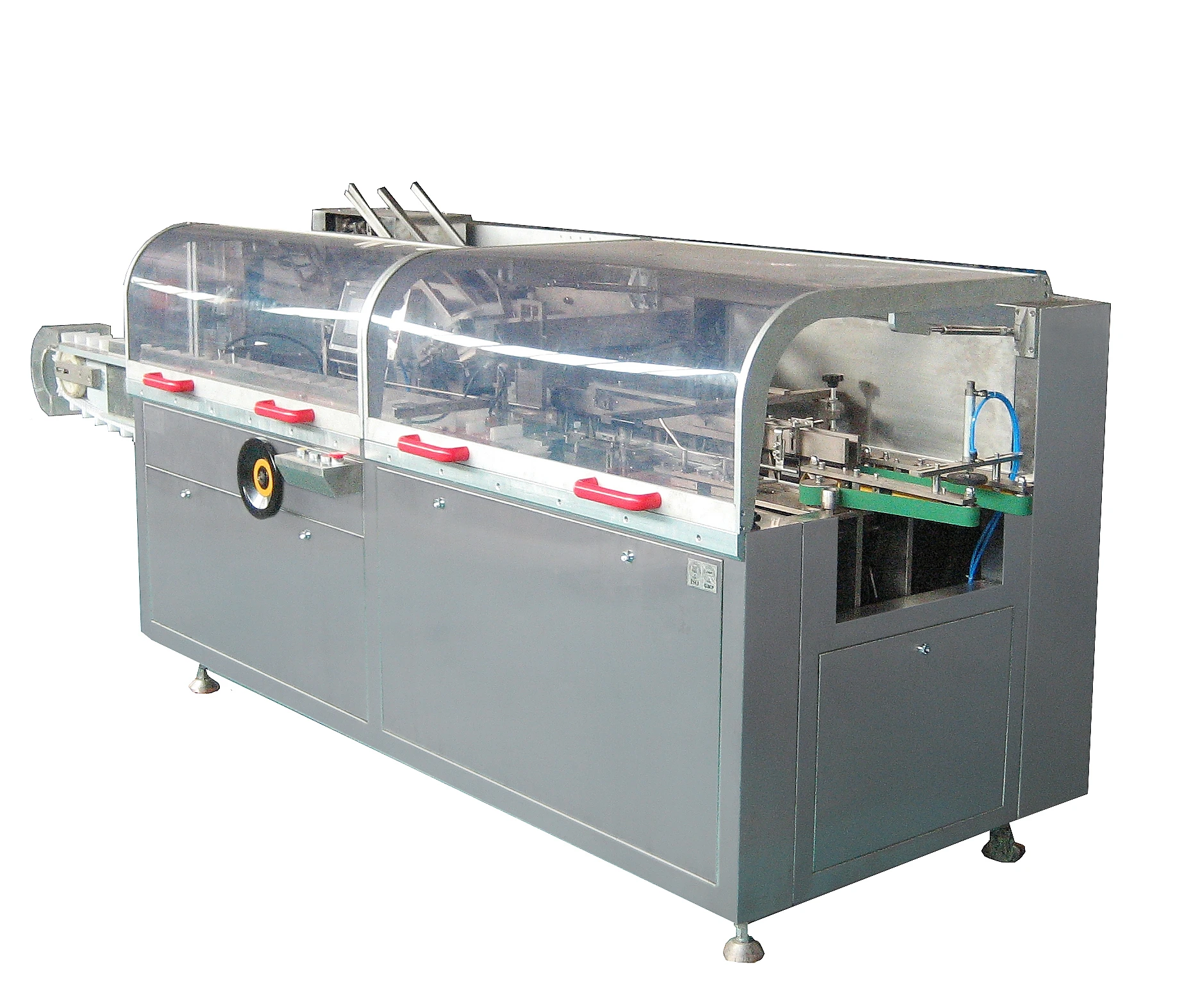

Automatic Blister - Carton Packing Production Line
Product specify:
The product, an auto assembly line for blister and carton packing, is developed by the company independently to cater for the criteria and requirement of GMP, in order to avoids the cross contamination during packing process. It integrates the photoelectron, mechanics, electric and pneumatic, controlled by PLC, driven by servo motor which can automatically finish the blister packing of capsules, tablets, ampoule and vial, instruction manual folding and carton packing. It adopts photoelectric monitoring to coordinate the operation of each section. If any exception takes place, it can stop automatically and display the troubles so as to solve them in due time. With advanced inspection system, the line can detect and recognize the plate that lacks of packed matter and the carton that lacks of plate or instruction manual and the defect eliminating rate should be as high as 100%.
| Punching frequency (Times/min) | 6-50 |
| Capacity (Box/min) | 50-100 |
| Max. forming area and depth (mm) | 240x110x26 |
| Travel range (mm) | 20-160 Can be designed as user's requirements. |
| Standard plate (mm) | 80X57 Can be designed as user's requirements. |
| Air pressure (Mpa) | 0.4-0.7 |
| Total power | 380V/220V 50Hz 8kw |
| Main motor power (kw) | 3 |
| Volume of air consumption | 20m3/h Pressure: 0.4-0.7 Mpa |
| Packing material | Carton weight: 250-300g/m2 Specification: Max. size (200x80x50mm) Specification: Min. size (60x25x15mm) |
| PVC sheet (mm): 0.15-0.5x250 | |
| PTP aluminum foil (mm): 0.02-0.35x250 | |
| Dialysis paper (mm): 50-100g x250 | |
| Operation manual Paper weight : 55-65g/m2 Specification Max. size: 260x190mm(L×W) Min. size: 100x100mm(L×W) | |
| Mould cooling | Tap water or recycle water |
| Overall dimension (mm) | 7000×1000×1700(L×W×H) |
| Weight (T) | 3.5 |
More pictures
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
