Cyclone Pulse Dust - Collector Grinding Machine


Cyclone Pulse Dust - Collector Grinding Machine

Grinding the dry and crisp materials

With grinding machine, cyclone separator

With dust collector, platform and control casing

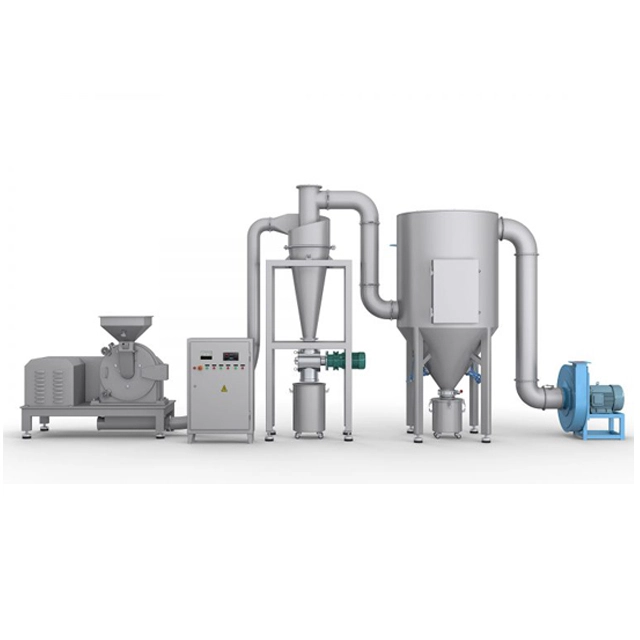

The machine is consists of grinding machine, cyclone separator, high efficient air filter dust collector, platform and control casing etc. The machine is suitable for grinding the dry and crisp materials in pharmaceutical, chemical, foodstuff. It integrates grinding and dust collecting, and it is not suitable for grinding materials of low softening point and large viscosity. The contacted parts are made of high quality stainless steel with good corrosion resistance, fully closed which is convenient for cleaning. The inside wall is smooth and bright which made the machine more meeting the GMP requirement in pharmaceutical, foodstuff and chemical.

Production Capacity 100-1500 kg/h
Rotary Speed 2800 r/min
Diameter of Feeding Granule 12 mm
Mesh size 20-120 mesh
Power of Grinding Motor 22 KW
Power of Dust Collecting Motor 5.5 KW
Power of Blower 0.37 KW
Air Compression 0.45-0.7MPa
Power 380V 50Hz
Overall size (L x W x H) 6450×1200×2200 mm
Weight 1900 kg


Packaging & Shipping

 1.Nomally shipping steps:


2.Our packing and shipping:


Our Services


     Pre-Sales Service:


         * Inquiry and consulting support.


         *Quickly reaction.


          *Factory inspection available anytime.



      After-Sales Service:


         *Prompt technical support


        *Engineers available to service machinery overseas


        *Installation &commissioning,good training for customers.



Our customer






Company Information



 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.


Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.


Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.


Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.


Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.


Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
