Eyedrop Filling and Capping Machine
Specifications
Automatic filling, automatic plugging and capping
Equipped with special internally unique mechanical hand
New GMP requirements

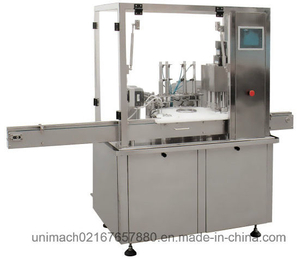

Mechanical hand style double-head eyedrop filling and capping machine
Brief introduction:
This machine is the new machine which in these years we design and make it. Man can set he number of steps peristaltic pumps with microcomputer to perform metering filling (special occasions with ceramic pump). It has the functions: Automatic filling, automatic plugging and capping. The machine is equipped with special internally unique mechanical hand. These can ensure the plug and the out cover to enter the bottle, so that it achieves fully automatical. The machine fully meets with new GMP requirements.
Characteristic:
1: Be setted by microcomputer, high precision, easy operate.
2: Filling system has sucked back, no dropping or leakage
3: Use the mechanical hand to plug and press the cover
4: No bottle, no filling, no plugging and no capping
Main technical parameters:
Filling Volume 2-20ml
Productivity 40-60 80-120 bottles/min
Filling Precision ≤ ± 1%
Power Supply 220V/50Hz
Capping Rate ≥ 99%
Stoppering rate ≥ 99%
Air Supply 2 m3/h 0.4-0.8Mpa
Power 1.0 kw
Weight 400 kg
Dimension 2400*1100*1500mm
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
