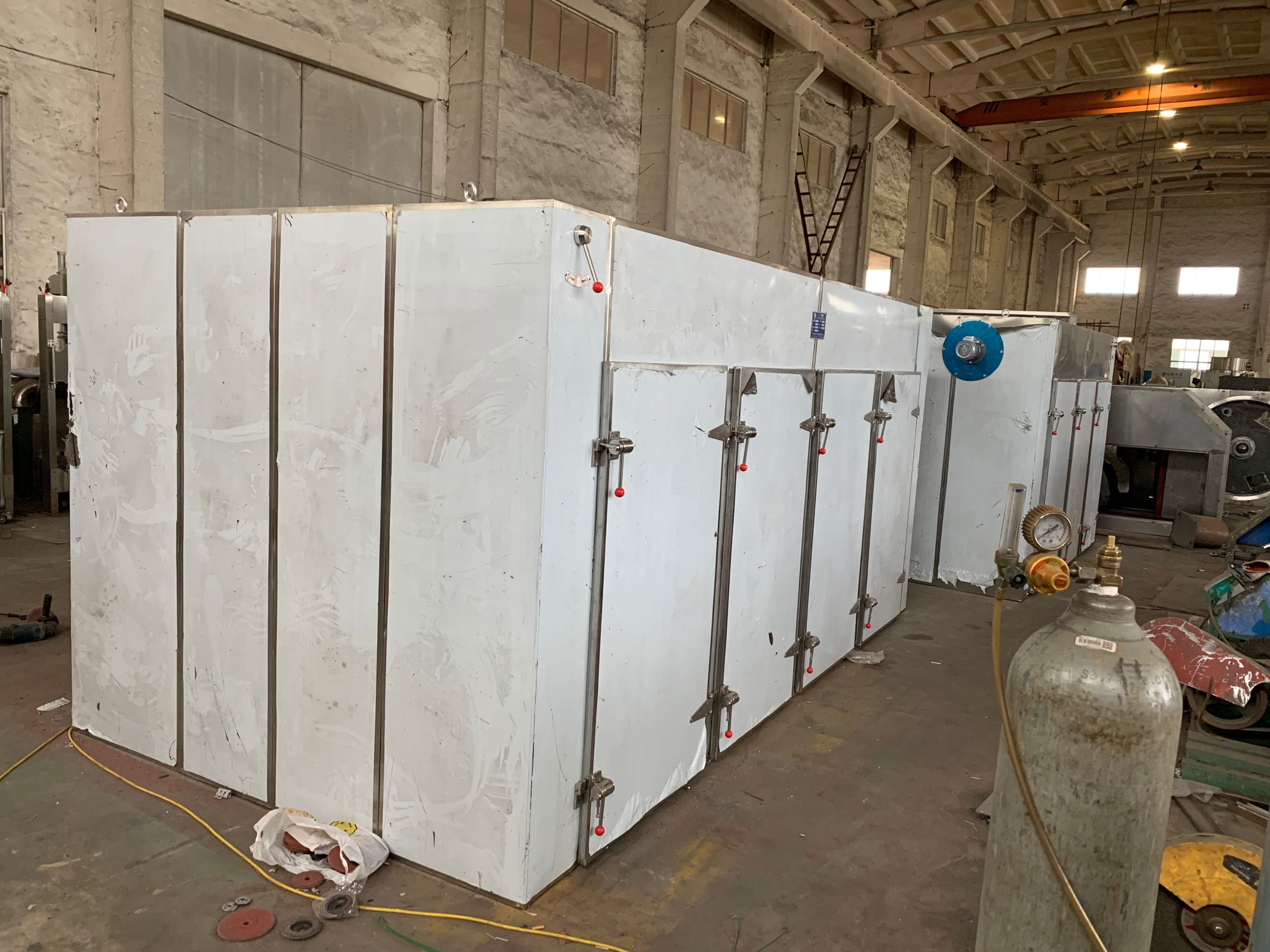

Hot Air Circulation Drying Oven for equipment

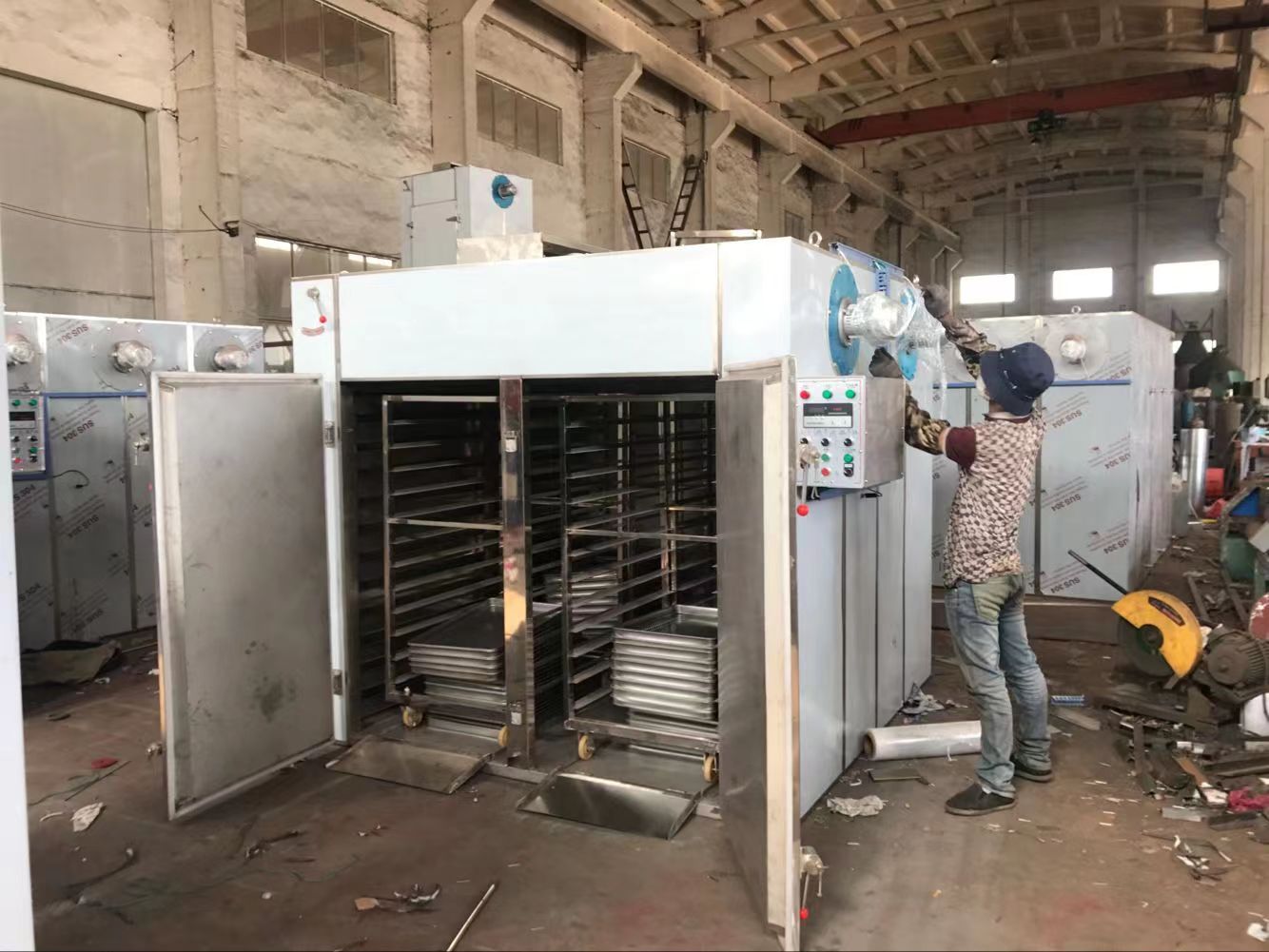

Hot air circulation ovens generally have heating tubes, and ovens with circulation fans can be called hot air circulation ovens because regardless of the structure of the oven, whether the wind direction is horizontal or vertical, it is ultimately hot air circulating inside. Therefore, they can all be referred to as hot air circulation ovens, such as electric blast ovens, double door high-temperature sterilization ovens, etc. However, most of the hot air circulation ovens in the general industry specifically refer to the ovens shown in the above picture. Other ovens have evolved from the ovens shown in the above picture. For example, with the requirement for high-temperature sterilization, the fan has been changed to a standardized air-cooled circular fan, and the front and back doors have been opened, and the air ducts have also been changed, resulting in a double door high-temperature sterilization oven. The hot air circulation shown in the above figure is divided into five standard
Descriptions
CT-C series hot air circulation drying oven adopts noise elimination and thermal stable axial flow fan and automatic temperature control system. The entire circulation system is enclosed to make that the heat efficiency of the drying oven increases from 3~7% of the traditional drying oven to 35~45% of the present one. The highest heat efficiency can be up to 50%. The successful design of GMP hot air circulation oven makes that the hot air circulation drying oven in our country reach the advanced level in the world. It saves energy and increases the economic benefit. In1990, the medical management bureau of the State issued the industry standard and the uniform type is RXH.
Applications
This drying oven is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries. Such as: Raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.
Explanations
1. Options of heat source: Steam, electricity, or far infrared, or both steam electricity.
2. Drying temperature: Steam heating 50-130 º C, Max. 140 º C.
3. Electricity and far infrared: 50-300 º C. Automatic control system and computer control system on request.
4. Commonly used steam pressure 0.2-0.8Mpa(2-8 bar).
5. For GMP-I, electric heated, rated power consumption: 15Kw, real consumption: 5-8Kw.
6. The special requirements should be indicated at the time of order.
7. Please consult as for any special requirements.
8. For operation temperature of over 140 º C or less than 60 º C, please indicate when order.
9. The ovens and baking trays made by our factory are uniform in dimensions, and can be exchanged each other.
10. Trays dimensions: 460x640x45mm
Features
Most hot air is circulated in the oven. The Heat efficiency is high and the energy is saved. By using the forced ventilation function, there are adjustable air distribution plates inside the oven. The materials can be dried uniformly. The heating source might be steam, hot water, electricity and far infrared. With a wide selection. The whole machine is low in the noise. The operation is in balance. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide. The machine can be used for drying various materials and is a versatile drying equipment.
| model | capacity (Kg.batch) | Power (Kw) | Steam used (Kg/h) | Heating area(m2) | Air velocity(m3/h) | Temperatue difference | Trays | Overall dimension | trolley(set) |
| CT-C-0 | 25 | 5 | 5 | 5 | 3400 | ±2 | 8 | 1400×1200×1600 | 0 |
| CT-C-IA | 50 | 0.45 | 10 | 10 | 3400 | ±2 | 24 | 1400×1200×2000 | 1 |
| CT-C-I | 100 | 0.45 | 18 | 20 | 3450 | ±2 | 48 | 2300×1200×2000 | 2 |
| CT-C-II | 200 | 0.9 | 36 | 40 | 6900 | ±2 | 96 | 2300×2200×2000 | 4 |
| CT-C-III | 300 | 1.35 | 54 | 80 | 10350 | ±2 | 144 | 2300×3220×2000 | 6 |
| CT-C-IV | 400 | 1.8 | 72 | 100 | 13800 | ±2 | 192 | 4450×2200×2000 | 8 |
| high effciency and high temperature far infrared sterilizing oven | 1200×1000×1600 | 1 | |||||||
