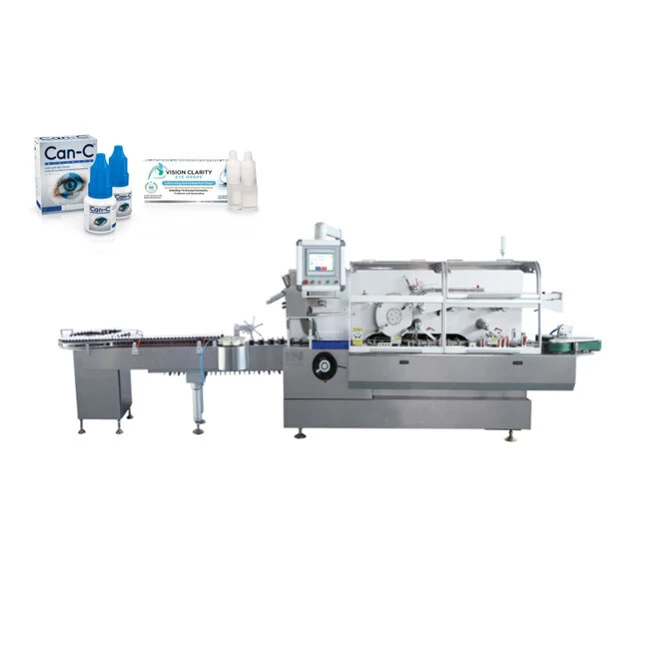

JDZ-260P Full Automatic High Speed Cartoning Machine

This model is automatic high speed continuous cartoning machine which is high performance product incorporates pneumatic-photo-electro-mechanic. It suitable for automatic inserting ALU-PVC blister, bottle, soft tube, soft AL/AL strips and pouch into carton, also can link to matching machine to form production line
jdz-260P:
Quantity:
  • JDZ-260P

JDZ-260 Full Automatic High Speed Cartoning Machine

1_副本

 5


1. General Description

JDZ-260 Automatic High Speed Continuous Cartoning Machine is new model which innovation design base on bringing in foreign advanced technology, also strictly according to pharmaceutical industry “GMP “standard to manufacture. With high efficiency, high performance production capacity, leaflet folding and conveying, carton opening and forming, posterior pushing structure and related technology all reach Europe and USA standards; Simple design and posterior continuous pushing structure makes  operation and maintenance more convenient; three equal rotation opening carton and under twice pre-forming device to ensure that carton open and form completely

This model is automatic high speed continuous cartoning machine which is high performance product incorporates pneumatic-photo-electro-mechanic. It suitable for automatic inserting ALU-PVC blister, bottle, soft tube, soft AL/AL strips and pouch into carton, also can link to matching machine to form production line

Main technical parameters

JDZ-260P

Encasing speed

260cartons/min

Carton

Quality requirement

250-350g/m2


Dimension range(L*W*H)

(70-180) *(35-80) *(14-50)mm

Leaflet

Quality requirement

60-70g/ m2


Unfolded leaflet specification

(80-250) *(90-170)mm


Fold range

1-4 fold

Compressed air

Working pressure

≥0.6mpa


Air consumption

160-200L/min

Power supply

220V 60HZ

Motor power

5Kw

Machine dimension(L*W*H)

6800*1600*1860mm

Machine weight

3400kg
