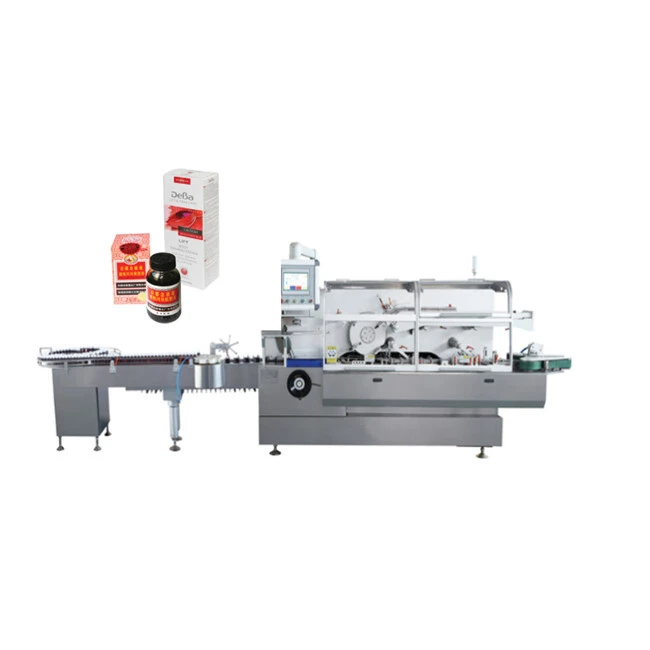

Jdz-120d Automatic Cartoning Machine
General Description:
This equipment is new model developping base on integrated domestic and foreign vanguard technology .It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.
This machine is suitable for condom, pouch, soft al/al strips, wound plaster, ointment plaster, facial mask plaster, coffee bag into carton. On line product feeding and detecting, leaflet fold (1-4folds) and feeding, leaflet detecting, canton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.
Weight & Dimensions:
| Type | JDZ-120D |
| Dimensions in mm | 2880mm×1140mm×1800mm (L×W×H) |
| Weight in kg | 1500 |
Output & Speed:
| Steady speed | 30-60 cartons/min |
Unfold Leaflet (optional):
| Grammage | Between (60-70)g/m2 |
| Size range | (80-250) ×(90-170)mm (L×W) |
| Fold range | (1-4 )fold |
| Notice: The leaflet can be folded by the machine | |
Carton and sachet:
| Grammage | Between( 250-350)g/m2 |
| Carton Size mm | (65-125)×(30-85)×(12-50)mm |
| Sachets/box | 1-12 |
| Sachet size mm |
| Standard power supply | 220V - 50Hz |
| Power consumption in KW | 1.1 |
| Air consumption | 120-160L/min |
| Compressed Air Pressure | 0.6MPa |
| Noise | <70 dB |
More pictures
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
