Tablet Film Coating Machine (BGB)

Tablet Film Coating Machine (BGB)

Tablet Film Coating Machine (BGB)

Product Description

It can be widely used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film etc.


1. All operations can be finished through pushing the touch key on the computer-controlled panel. The operational panel is a full-sealed slight touch film interface. The main machine has reliable and stable performance.

2. The streamline guiding-type mixer drives tablets to make easy and smooth rotation without fragment and chipped edge, which improves the quality of finished products.

3. Automatic feeding device stopped the cross pollution, convenient to feed, with high efficiency and full direction. The coating boiler equipped in the high pressure spray gun, which can rotate 1800, there set a cleaning sprayer at the air exhaust exit and hot air mouth, which can be rotated in automatic and full direction, without dead corner more convenient to clean.

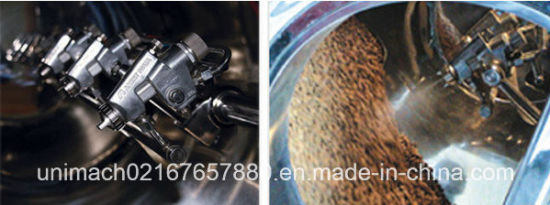

4. Select the imported Japan ANEST IWATA spray gun. It's convenient to operate and easy to master and flexible controlled technological requirement. The spray gun head requirement must keep in the range of 0.29 MPa to 0.39 MPa.

5. Angle and sector can be adjustable, uniform density and particle in spray pressure and 0.4-0.5MPa in atomization pressure that avoid the dropping leakage and blockage phenomenon of size, uniform atomization and large spray area, practical to adjust flow, free leakage and blockage, angle and sector.

6. Film coating machine contains the mechanical device of cauldron wrapping little material can coat at least 20kg plain pills in 150 type coating machine, regulate through it inherent machinery, make a small mount of medium coat in cauldron and will not cause the wasted of dressing and greatly improve the scope of appliance.

Item/model BGB1000 BGB600 BGB400 BGB150 BGB80 BGB40 BGB10
Loading Capacity (kg/batch) 1000kg 600 kg 400 kg 150 kg 80 kg 40kg 10 kg
Drum Revolution (r/min) 2.0-12rpm 2.0-12 rpm 0-13rpm 2.1-14 rpm 2.0-16 rpm 2.0-18 rpm 3.0-19 rpm
Main Machine Power 7.5KW 4KW 3KW 2.2KW 1.5KW 1.1KW 0.55KW
Diameter of coating drum 1800mm 1580mm 1580mm 1200mm 930mm 780mm 500mm
Power of air exhaust cabinet motor 11KW 11KW 7.5KW 5.5KW 3KW 2.2KW 0.75KW
Air exhaust flow 18000m3/h 15450 m3/h 10000m3/h 7419 m3/h 5268 m3/h 3517 m3/h 1285m3/h
Power of hot air cabinet motor 7.5KW 4KW 2.2KW 1.5KW 1.1KW 0.75KW 0.37KW
Hot air flow 10650 m3/h 6500 m3/h 3517 m3/h 2356 m3/h 1685 m3/h 1285 m3/h 816 m3/h
Weight of main machine 2000 kg 1600 kg 1000 kg 850 kg 600kg 500kg 200kg
Clean air Pressure 0.4MPa ≥0.4MPa ≥0.4MPa ≥0.4MPa ≥0.4MPa ≥0.4MPa ≥0.4MPa
Air consumption 2.5m3/min 2 m3/min 1.5 m3/min 0.7 m3/min 0.35 m3/min 0.2 m3/min 0.2 m3/min

Tablet Film Coating Machine (BGB)


Tablet Film Coating Machine (BGB)

Tablet Film Coating Machine (BGB)


Tablet Film Coating Machine (BGB)
BGB-10 and BGB-400

Packaging & Shipping

 1.Nomally shipping steps:


2.Our packing and shipping:


Our Services


     Pre-Sales Service:


         * Inquiry and consulting support.


         *Quickly reaction.


          *Factory inspection available anytime.



      After-Sales Service:


         *Prompt technical support


        *Engineers available to service machinery overseas


        *Installation &commissioning,good training for customers.



Our customer






Company Information



 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.


Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.


Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.


Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.


Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.


Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
