Vertical Roll Film Ampoule Forming Liquid Filling And Sealing Machine
Performance and characteristics
1. Adopting HC high-speed and high-precision motion controller, stepless frequency conversion speed control, and full servo motor control system.
2. Adopting a human-machine interface control system, the servo motor pulls the film, making it easy to adjust the length of the mold by changing it, and the operation is simple.
3. Automatic unwinding, film slitting and folding, equipped with photoelectric image and text matching function. Can be used as a standing bottle, with a flat bottom that can stand upright, making the product more aesthetically pleasing.
4. The packaging material has low consumption and high utilization rate, reaching 95% -99%, greatly saving packaging costs.
5. Adopting an electronic peristaltic pump canning system, it is easy to clean and adjust.
6. The filling accuracy is precise, and the filling has a suction function without dripping.
7. The contact area with the material is made of 316L high-quality stainless steel, and the machine casing is made of SUS304 stainless steel, which meets GMP standards.

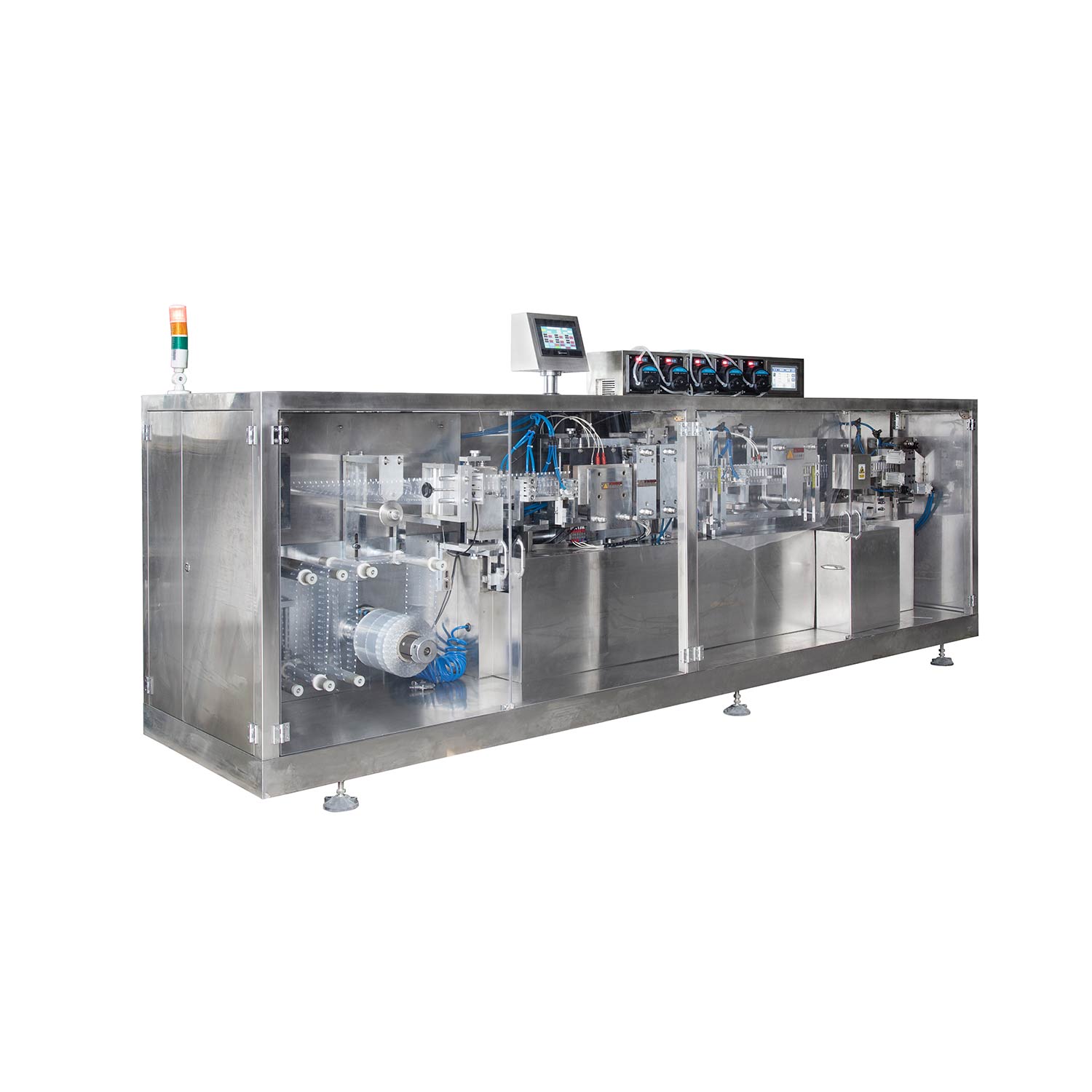

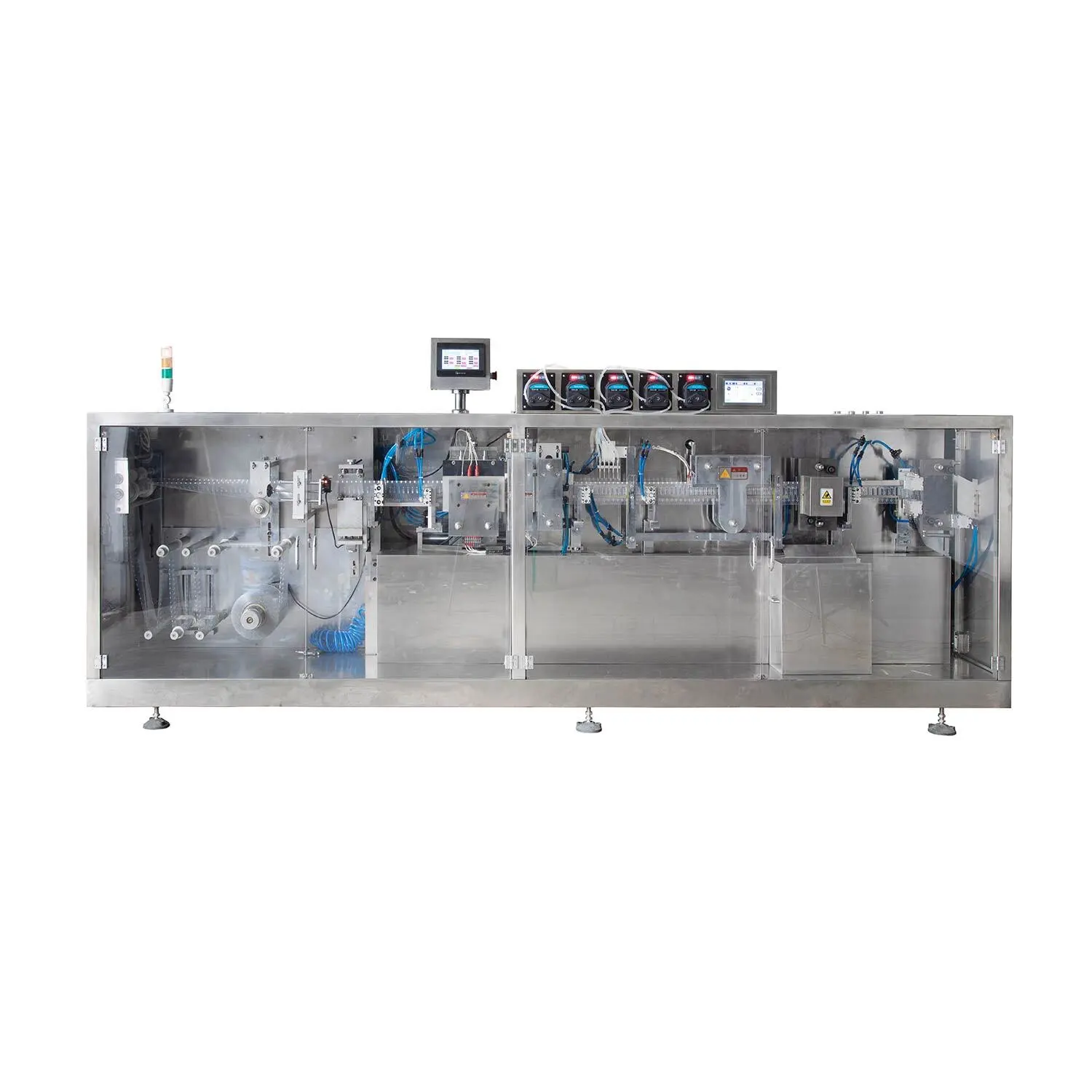

GGS-240(P5) Oral automatic liquid filling sealing machine
Performance and feature
High capacity, high speed, high precision, and advanced motion controller. Stepless frequency conversion speed regulation control. Servo motor controls film traction device.
Human-machine interface, easy to operate.
Automatic unwinding, roll film cutting. It has positive and negative pattern alignment function with photoelectric device. The product is exquisite and beautiful, which meets high standard of packing requirements.
It adopts electronic peristaltic pump device and mechanical piston pump control, which has convenient adjustment.
High filling accuracy with suction back function without any dripping.
The parts contacting with the medicine adopt high quality stainless steel 316L, and the outer cover of the machine is made of SUS304 stainless steel, which meets with GMP standard.
As the bottom of the bottle is flat, so it can stand.
Main technical parameter
Max. forming depth | 12mm |
Punch frequency | 0-25 times |
Packing material | PVC/PE，PET/PE（0.2-0.4）×240mm |
Filling volume | 1-50ml |
Toal power supply power | 7KW |
Voltage | 380V/50Hz |
Machine weight | 1200Kg |
Overall dimension (L*W*H) | 3200×850×1400(mm) |
