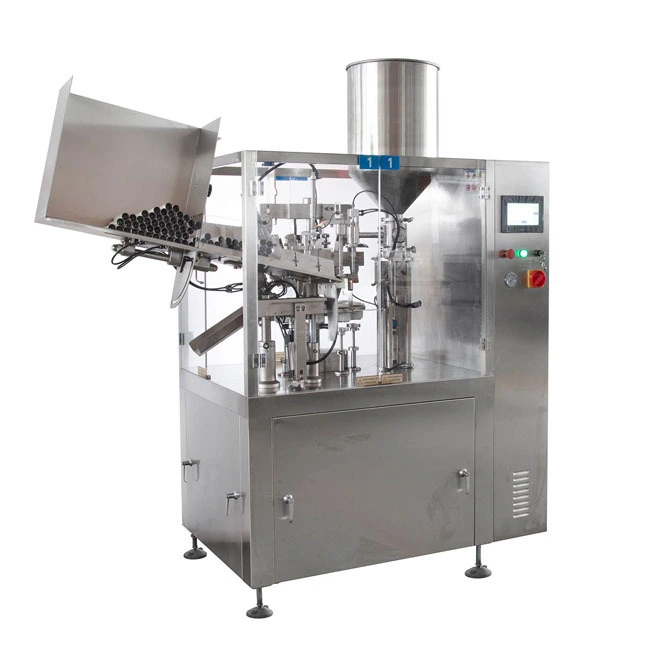

Alcohol gel Tube Fill Seal Machine
1. Product introduction
This machine is an electromechanical integration product. It adopts a variety of imported technologies and is controlled by PLC. At the same time, it completes the action of upper tube, pressure tube, cursor, filling, sealing, batch numbering, folding/tailing, and ejection. Mainly suitable for mass production. Products are widely used in cosmetics, toothpaste, ointment, shoe polish, art paint, food and other industries. The main functional configuration of the device is:
(1) Automatic drop tube box drop pipe;
(2) Pressure tube shaping device;
(3) Pipe color mark positioning device;
(4) New filling structure (filling piston is customized according to customer requirements);
(5) Multi-functional filling nozzle (suitable for a variety of materials, anti-drip, anti-drawing);
(6) (for aluminum tube) automatic sealing device / (for aluminum tube) automatic folding device;
(7) Automatic batch number at the end of the tube; (the batch number is customized according to the buyer 's requirements)
(8) The finished pipe is automatically ejected; (the connection with the rear cartoning machine is convenient and smooth)
(9) Silent rail and chain type drive (middle speed design);
(10) Micro-motion adjustment device (for maintenance and repair, imported Meikeno)
(11) High-speed electrical appliance configuration (see the main configuration instructions of the device for details);
Technical parameter
Project | Unit | Aluminum tube sealing assembly L-Type |
Production capacity | Tubes/min | 80-90 |
Filling volume | ml | 2-200 |
Hose diameter | mm | 11-35 |
Hose length | mm | 50-200 |
Maximum power | KW | 1.5 |
Air consumption | N.m3/h | 1-5 |
Machine weight | kg | About 1800 |
Dimensions (L*W*H) | mm | 2600*1210*2200 |
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
