500L Vacuum Emulsifier Mixer (ZJR-500)



The equipment is widely used for emulsification of the pharmaceuticals, cosmetic, fine chemical products, especially the material having high matrix viscosity and solid. It works by homogenizer, fixed stirrer, scrapers residues stirrer.


ZJR Vacuum Emulsifying Mixer Series is composed of emulsification boiler(fluctuating cover, overturn kettle form or outside circle form),water tank,oil tank,vacuum pump system,heating and temperature control systems, cooling systems, electric machinery control systems. etc.
It can make various facial cream, lotion, shower, cream,ointment, shampoo, paste, gel, honey, meat, milk, sauce etc.

500L Vacuum Emulsifier Mixer (ZJR-500)

500L Vacuum Emulsifier Mixer (ZJR-500)

500L Vacuum Emulsifier Mixer (ZJR-500)

500L  Emulsifying  Mixer  Configuration  List
Capacity Design  total  volume: 650L
Working  volume: 500L
Min. working  capacity: 100L
Material Inner  layer: Material  contact  part: stainless  steel  316L, thickness: 6mm
Jacket:   stainless  steel  304, Thickness: 5mm
Outer  layer: stainless  steel  304, thickness: 4mm
Equipemt  total  weight 3000kg
Dimension 2500mm× 1500mm× 2700-3900  mm
Use  time Above  10years

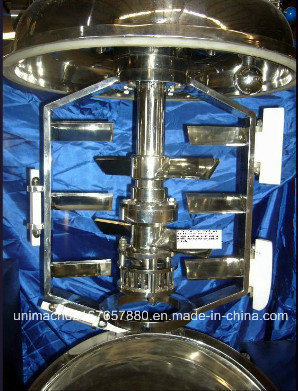

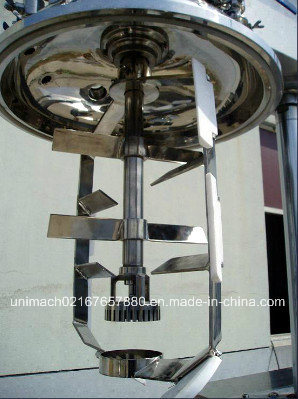

Stirring Frame  type  scraper  stirring  and  fixed  propeller/mixer.

Homogenizer On  the  top  of  emulsifying  tank.

Motor  power  : 11KW

Speed: 2800r/min, 1400r/min

Particle  size: 0.2-0.6um
Vacuum Included  vacuum  pump
Opening  cover  way Hydraulic  up-and-down
Heating Electric  or  steam
Discharge  material Tilt  or  bottom  valve
Pressure Working  pressure  : -0.09
Wearing  parts Spare  parts  for  one  year
Warranty 1year
Adjust Supplier

Packaging & Shipping

 1.Nomally shipping steps:


2.Our packing and shipping:


Our Services


     Pre-Sales Service:


         * Inquiry and consulting support.


         *Quickly reaction.


          *Factory inspection available anytime.



      After-Sales Service:


         *Prompt technical support


        *Engineers available to service machinery overseas


        *Installation &commissioning,good training for customers.



Our customer






Company Information




 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.


Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.


Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.


Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.


Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.


Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
