Applications
The equipment is widely used for emulsification of the pharmaceuticals, cosmetic, fine chemical products, especially the material having high matrix viscosity and solid. It works by homogenizer, fixed stirrer, scrapers residues stirrer.
Composition:

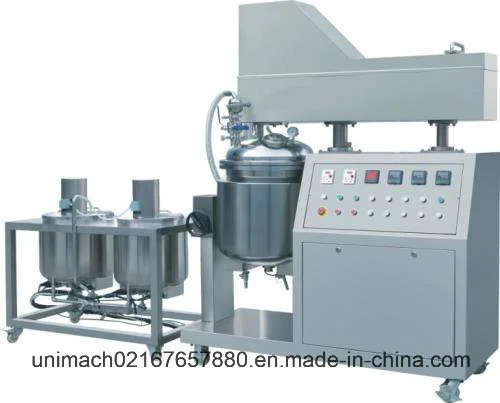

ZJR Vacuum Emulsifying Mixer Series is composed of emulsification boiler(fluctuating cover, overturn kettle form or outside circle form), water tank, oil tank, vacuum pump system, heating and temperature control systems, cooling systems, electric machinery control systems. Etc.
It can make various facial cream, lotion, shower, cream, ointment, shampoo, paste, gel, honey, meat, milk, sauce etc.
Technical specifications
| Name | ZJR-30 | ZJR-50 | ZJR-100 | |
| Emulsifying tank | Design Volume (L) | 30 | 50 | 100 |
| Working Capacity (L) | 25 | 40 | 80 | |
| Scraper Stirring Power (KW) | 0.75 | 0.75 | 1.5 | |
| Scraper Stirring Speed (rpm) | 0-86 | 0-86 | 0-86 | |
| Homogenizer Power (KW) | 1.5 | 1.5 | 3 | |
| Electrical Heating Power (KW) | 2 | 4 | 6 | |
| Homogenizer Speed (rpm) | 2800 | 2800 | 2800 | |
| Water tank | Design Volume (L) | 25 | 38 | 60 |
| Capacity (L) | 20 | 30 | 45 | |
| Power (KW) | 0.55 | 0.55 | 0.55 | |
| Speed (rpm) | 1400 | 1400 | 1400 | |
| Electrical Heating Power (KW) | 2 | 2 | 4 | |
| Oil tank | Design Volume (L) | 17.5 | 25 | 45 |
| Capacity (L) | 14 | 20 | 35 | |
| Power (KW) | 0.55 | 0.55 | 0.55 | |
| Speed (rpm) | 1400 | 1400 | 1400 | |
| Electrical Heating Power (KW) | 2 | 2 | 4 | |
| Dimension | Emulsifying (Length*Width*Height) | 1400*600*(1900-2400) | 1400*600*(1950-2500) | 1750*650*(2150-2850) |
| Water Boiler and Oil Boiler (Length*Width*Height) | 880*510*1050 | 950*550*1100 | 1220*610*1300 |
·
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
