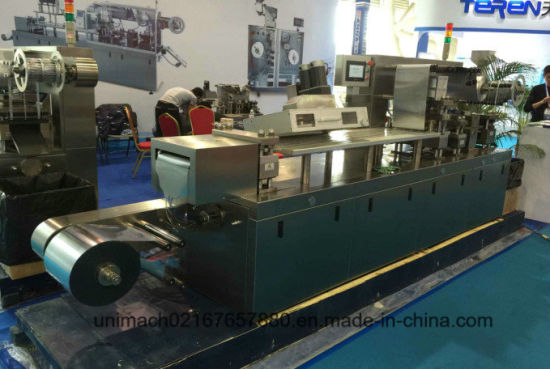

Alu/Alu (Alu-PVC) Blister Packing Machine

Availability:
Quantity:

1. Function Introduction:
Blister packing machine is featured in small size, compact structure and high productivity.
2. Main Features:
It is suitable for double Alu photonegative blister packing of tables, capsules, pills, top quality medicine, etc.
Protect the medicine better for its super barrier and photonegative character.
It is easy to alter blister size, replace mould and adjust the machine in a short time even without senior experts and special tools.
Needless heating for hard ALU packing materials it can be shaped with cool mechanic punch directly. Harmless to both packing thickness more even and pretty.
Computer controls the whole machine, running step-less speed regulation.
No waste on pack edges to save packing materials; Step-forward cutting
Make blisters smooth and reliable adjustment. In accord with GMP standard.

Hard Aluminum Thickness:   0.15mm
Max.width:  130mm
External Dia: 400mm
Inner Dia:      70-76mm
Aluminum Foil Thickness:   0.02mm
Max width:  130mm
External Dia: 280mm
Inner Dia:      70-76mm
Max. index length before punching 105mm
Max index length after forming 180mm
Max.forming area 130mmx160mm
Max. forming ratio 70 times/min
Water consumption 2.3L/min
Air consumption 10L/min
Power 380V, 50Hz
Total Power 7KW
Total Weight 1200kg
Dimension(LxWxH) 2050x830x1800


Alu/Alu (Alu-PVC) Blister Packing Machine

Alu/Alu (Alu-PVC) Blister Packing Machine

Alu/Alu (Alu-PVC) Blister Packing Machine

Alu/Alu (Alu-PVC) Blister Packing Machine

Alu/Alu (Alu-PVC) Blister Packing Machine

Alu/Alu (Alu-PVC) Blister Packing Machine


Packaging & Shipping

 1.Nomally shipping steps:

 S45PNZ%`OL`M6O8H}V(SDJ

2.Our packing and shipping:

(4[KDGL_NF%E6%2]D`4JYP

Our Services

 0OC}YRDYXP])TO]QMXZ48IJ

     Pre-Sales Service:



         * Inquiry and consulting support.



         *Quickly reaction.



          *Factory inspection available anytime.





      After-Sales Service:



         *Prompt technical support



        *Engineers available to service machinery overseas



        *Installation &commissioning,good training for customers.





Our customer

 KE1PX$_SO]LLORZU3`DH8UW



Certifications

[$X~Z{0)[{$PW5F}H666N6M



Company Information

RX2]L7{%NOW0`YXF9~)M{_G



FAQ

 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.



Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.



Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
