Product Description
Features:

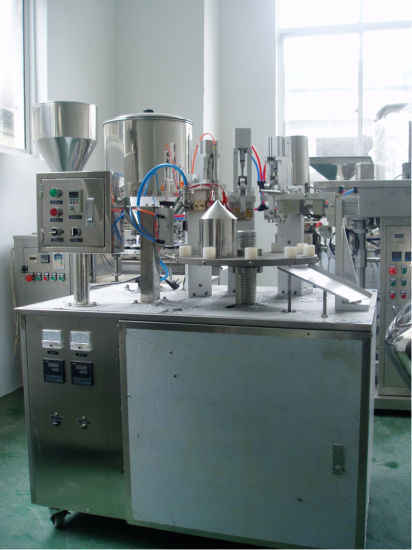

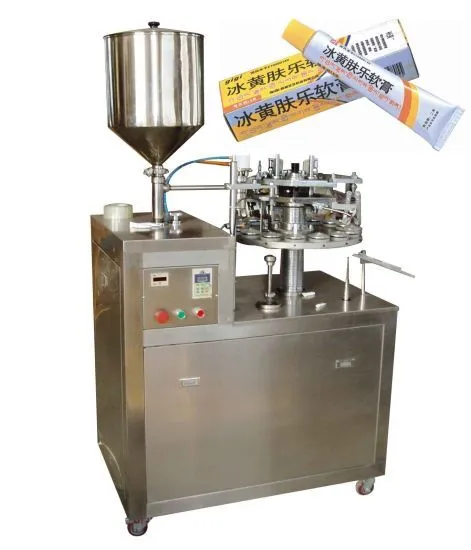

The aluminium tube filling sealer is mainly used in the materials package using the aluminum tubes as the packing container. The filling, tail-sealing and batch-number printing are finished at one time. This machine is used for the products packing in the fields of medicine, daily chemical products, food and fine chemical industry, for example, the filling and tail-sealing for cream, ointment, hair dyes, pigments, toothpastes, shoe polishes, and adhesives.
Work process:
Insert the aluminium tube in the socket on the indexing aluminum plate by hand and use the indexing mechanism for the transmission and location and photoelectric detection and the metering pump for quantitative filling. The tail sealing and printing are finished at one time and the finished products are automatically pushed out.
Structural characteristics:
This machine adopts piston mode to achieve precise filling and the measuring error is less than 1%. It has no liquid leak and its speed is adjustable. It also can be bidirectionally folded which is the most advanced horseshoe mechanism. It produces good sealed tails and its operation is simple. Its filling, sealing and printing are finished at one time. It thoroughly solves the problem of wiredrawing commonly existing in the producing process and the common fault of leaking at the tail after sealed. As for the special industry, it needs to be added with the gas protection device to prevent the solidification phenomenon occurring during transportation and storage process after the materials are sealed.
Technical parameters:
Capacity: 10-35tubes/min (adjustable)
Compressed air: Pressure0.2-0.4MPa
Filling Quantity: 5-55 ml, 30-150ml
Power: 0.01 M3/min
Tube Size: Dia. 10-35 mm Length: 50-180 mm
Input supply voltage: 220V 50Hz
Dimensions: 1130mm * 750mm *1680mm
Motor Power: 1.1 kw
Weighs: 450 kg
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
