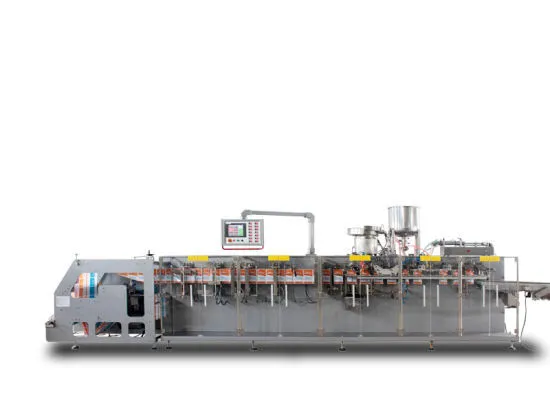

Automatic Horizontal Doypack Packaging Machine High Speed, Duplex (DZS-280)


DZS-280 series Automatic Horizontal Doypack Packaging Machine has doypack function &duplex design, meet multifunctional packaging requirement like hanging hole, special shape, zipper or spout, the filling capacity is 600ml, the maximum speed can reach 120bags/min.

Pouch making, sealing and filling are relatively independent system. The two systems are connected by mechanical connection and PLC. Therefore, suitable for different packaging material and pouch sizes. Finished product sealing system uses hot seal packaging material to go on automatic pouch making, and so on. Pouches are doy pack, special shape, hanging hole. Selecting different filler can package different products.

ModelDZS-280SDZS-280DSZDZS-280DSCDZS-280DSXCPouch Size (width)90-140mm90-140mm90-140mm110-140mmPouch Size (length)110-250mm110-250mm110-250mm120-250mmFilling Capacity600ml600ml600ml600mlPackaging speed80-120pouches/min80-120pouches/min80-120pouches/min80-120pouches/minPower13.5kw15.5kw15.5kw15.5kwAir Consumption400NL/min400NL/min400NL/min400NL/minMachine Dimensions(LxWxH)9220x1210x1500mm10120x1210x1500mm10120x1210x1500mm10120x1210x1500mmWeight3000kg3200kg3200kg3200kgFunctionDoypack, irregular shape,Hanging holeDoypack, irregular shape,Hanging hole, ZipperDoypack, irregular shape,Hanging hole,vertical spoutDoypack, irregular shape,Hanging hole, inclined spout

Automatic Horizontal Doypack Packaging Machine High Speed, Duplex (DZS-280)

Packaging & Shipping

 1.Nomally shipping steps:


2.Our packing and shipping:


Our Services


     Pre-Sales Service:


         * Inquiry and consulting support.


         *Quickly reaction.


          *Factory inspection available anytime.



      After-Sales Service:


         *Prompt technical support


        *Engineers available to service machinery overseas


        *Installation &commissioning,good training for customers.



Our customer






Company Information



 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.


Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.


Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.


Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.


Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.


Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
