Automatic Powder Foodstuff Seasoning Filling Machine
Automatic Powder Foodstuff Seasoning Filling Machine
Descriptive abstract:

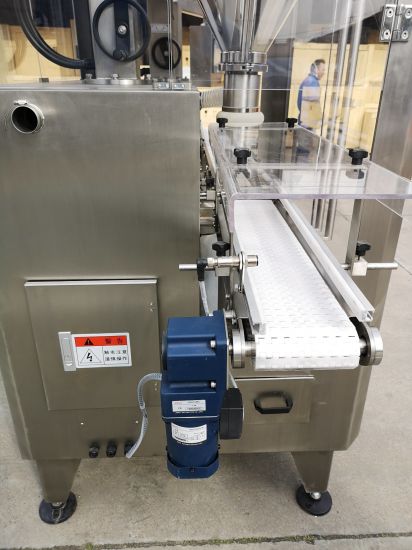

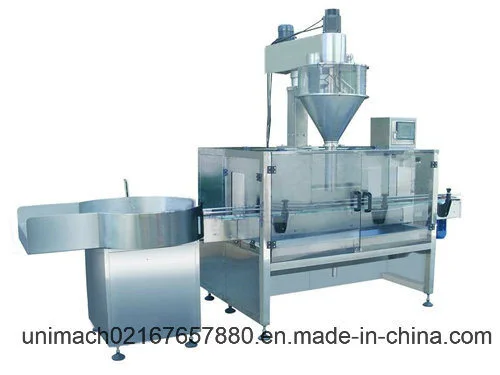

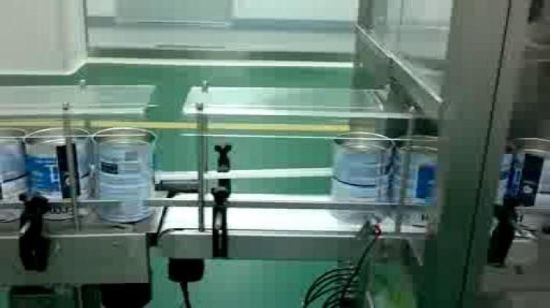

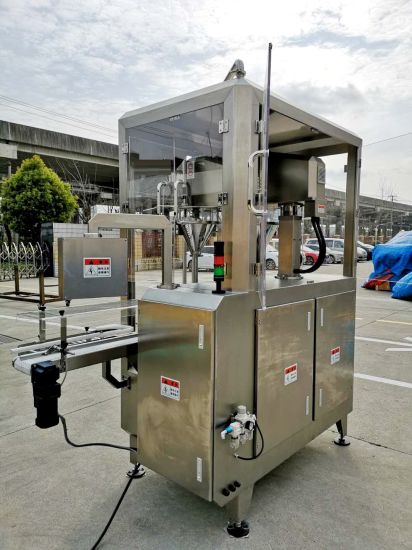

This Machine is a complete, economical solution to your filling production line requirements. Can measuring and filling powder and granular. It consists of the Filling Head, an independent motorized chain conveyor mounted on a sturdy, stable frame base, and all necessary accessories to reliably move and position containers for filling, dispense the required amount of product, then quickly move the filled containers away to other equipment in your line (e. G., cappers, labelers, etc. ). It fits more to the fluidic or low-fluidity materials, like milk powder, albumen powder, pharmaceuticals, condiment, solid drink, white sugar, dextrose, coffee, agriculture pesticide, granular additive, and so on.
Main features:

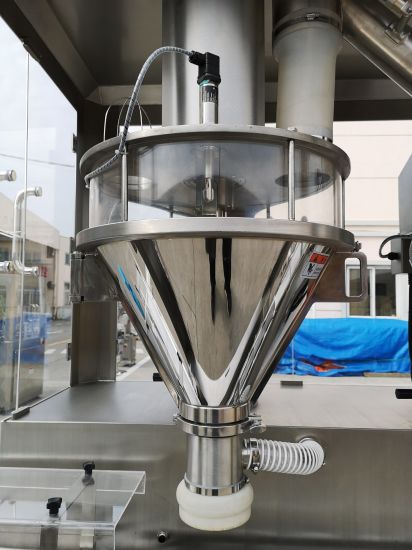

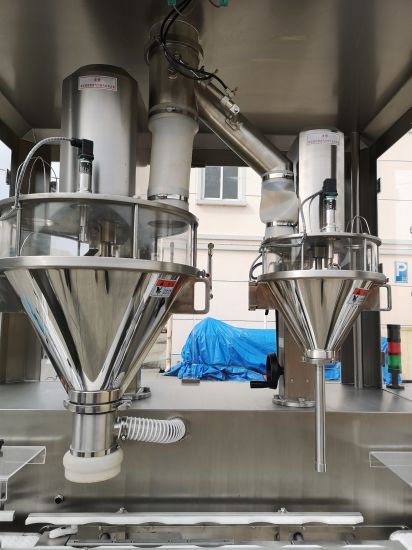

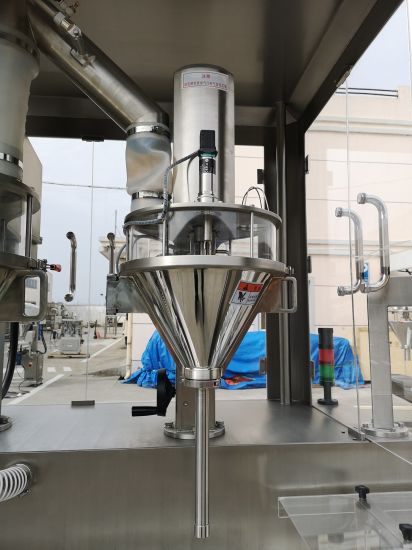

Stainless steel structure; The quick disconnecting hopper could be washed easily without tools.
Servo motor drive screw.
PLC, Touch screen and weighing module control.
To save all product's parameter formula for later use, save 10 sets at most.
Replacing the auger parts, it is suitable for material from super thin powder to granule.
Include handwheel of adjustable height
| Dosing Mode | Directly dosing by auger | |
| Filling Weight | 10g - 5kg | |
| Packaging Accuracy | ≤ 100g | ≤ ± 2% |
| 100 - 500g | ≤ ± 1% | |
| ≥ 500g | ≤ ± 0.5% | |
| Packing Speed | 15 - 60 bottles/min | |
| Power Supply | 3P /208-415V 50/60Hz | |
| Total Power | 1.6KW | |
| Air Supply | 6kg/cm2 0.05m3/min | |
| Total Weight | 320kg | |
| Overall Dimensions | 2000× 970× 2030mm | |
| Hopper Volume | 45L(Enlarged size 65L) | |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
