Product Description:

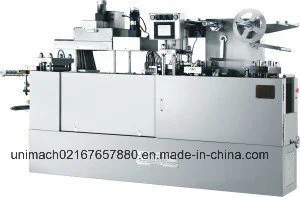

DPP series Blister Packing Machine
Application:
This blister packing machine is applicable to pack the tablets, hard capsule, soft gel capsule, candies, pills into ALU/PVC, ALU/ALU or Paper/PVC packing.
Feature:
Worm wheel reductor: Main machine overloading protect with lower noise and stabile running.
Adjustable range of stroke: Can change the stroke dimension freely to suitable more kinds of product.
No waste material cutting station can save material cost.
Double orientation shafts with spline shaft transmission adopted to ensure synchronization stabile running.
Touch screen with PLC mold adopted, stabile operation and easy maintenance.
It also can pack with hard double-aluminum after refreshing the mold.
| Model | DPP-80 | DPP-140 | DPP-250 | |||
| Packing speed (times/min) | 20-40 | 20-40 | 20-45 | |||
| Range of stroke (mm) | 20-100 | 40-120 | 40-120 | |||
| Packing material | PVC pharmacy PVC(mm) | (0.2-0.4)*80 | (0.2-0.4)*140 | (0.2-0.4)*250 | ||
| PTP Al Foil (mm) | (0.02-0.05)*80 | (0.02-0.05)*140 | (0.02-0.05)*250 | |||
| Compressed air (pressure) | 0.6-0.8 Mpa | |||||
| Air consumption (m³/min) | ≥0.2 | ≥0.2 | ≥0.3 | |||
| Power (kw) | AC 380v,50HZ,1.8kw | |||||
| Water chiller for molds | Tap water or recycle water with 60L/h consumption | |||||
| Overall size (mm) | 900*460*890 | 3200*650*1700 | 3200*750*1700 | |||
| Weight (kg) | 350 | 1200 | 1700 | |||
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
