CGN-208D
1

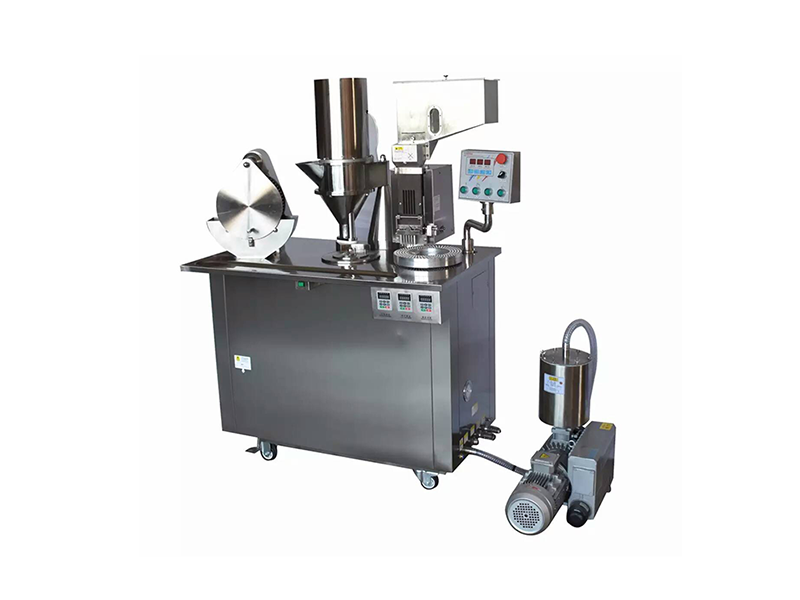

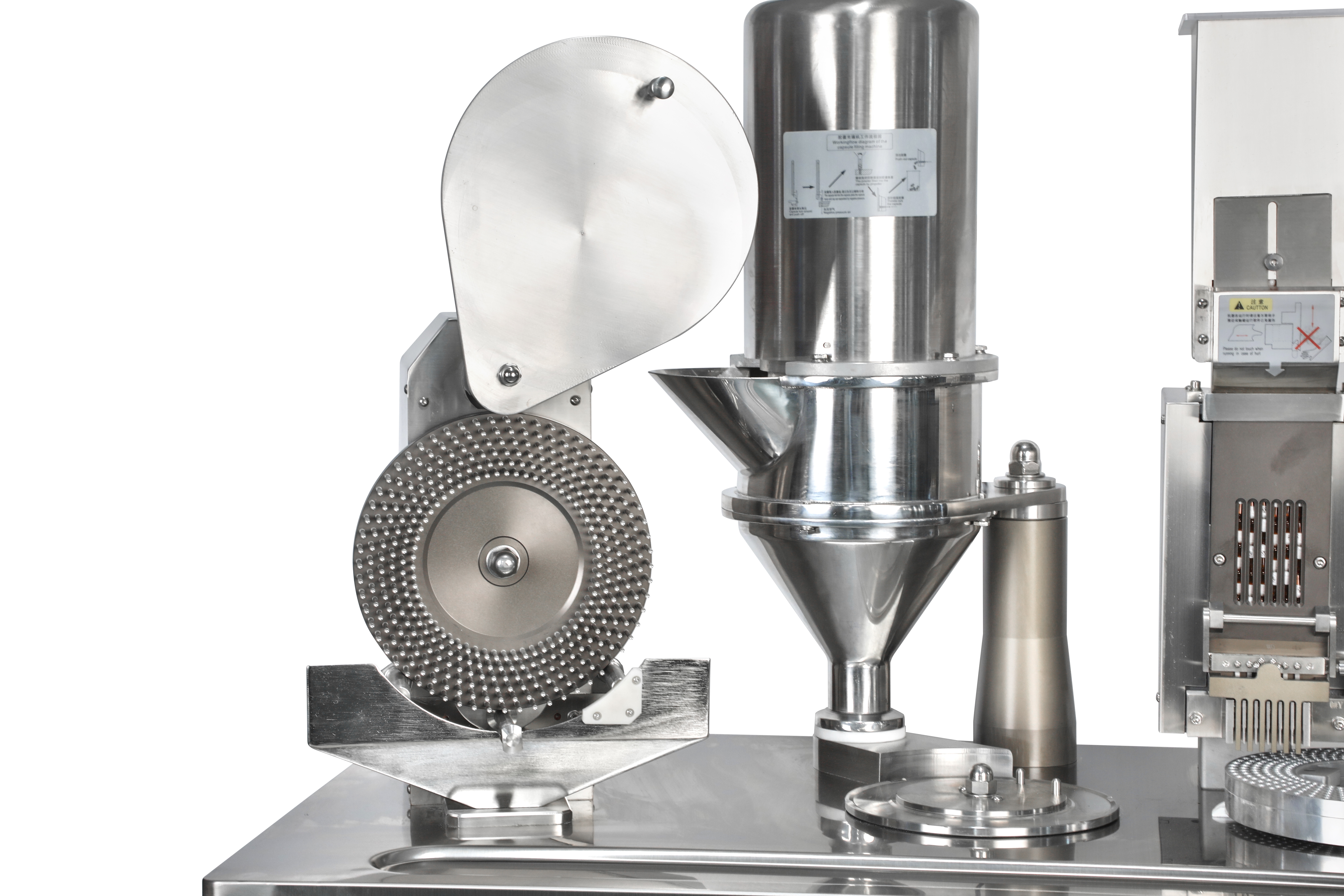

Illuminate of Semi-automatic Capsule Filling Machine: Integrating machine, electricity and air, the machine is easy to make separate operation of such actions as feeding, separation, filling and locking etc. The machine and working panel are made of stainless steel, which conforms to sanitary requirements of pharmacy. It is also suitable for filling powder of granular medicines and health products into capsule.
Characters
1. The light-touch switches, feeding propeller and filling rotary table can be in automatic run based on preset and frequency speed control.
2. Reducing the packing cost due to high application and run on.
3. Without traditional gearbox, it is simple in structure and easy to make maintenance.
4. Keeping balance of filling amounts on both sides.
Technical specifications
| Production capacity | 10000-20000 capsules/h |
| Applicable capsule | 000#,00#,0#,1#,2#,3#,4# hard and safety-capsules |
| Total power | 3.1KW |
| Compressed air | 0.4-0.6MPa,40m3/h |
| Power supply | 3-phases 4-line (380V 50Hz) |
| Overall size | 1350×600×1500mm |
| Weight | 330kg |
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
Illuminate of Semi-automatic Capsule Filling Machine: Integrating machine, electricity and air, the machine is easy to make separate operation of such actions as feeding, separation, filling and locking etc. The machine and working panel are made of stainless steel, which conforms to sanitary requirements of pharmacy. It is also suitable for filling powder of granular medicines and health products into capsule.
Characters
1. The light-touch switches, feeding propeller and filling rotary table can be in automatic run based on preset and frequency speed control.
2. Reducing the packing cost due to high application and run on.
3. Without traditional gearbox, it is simple in structure and easy to make maintenance.
4. Keeping balance of filling amounts on both sides.
Technical specifications
| Production capacity | 10000-20000 capsules/h |
| Applicable capsule | 000#,00#,0#,1#,2#,3#,4# hard and safety-capsules |
| Total power | 3.1KW |
| Compressed air | 0.4-0.6MPa,40m3/h |
| Power supply | 3-phases 4-line (380V 50Hz) |
| Overall size | 1350×600×1500mm |
| Weight | 330kg |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
