HB-220
10700-20000
Specifications
1)inspecting: Hard capsules, soft capsules, plain or coated tablets
2)output up to 120000 capsules/h
3)easy cleaning &maintance

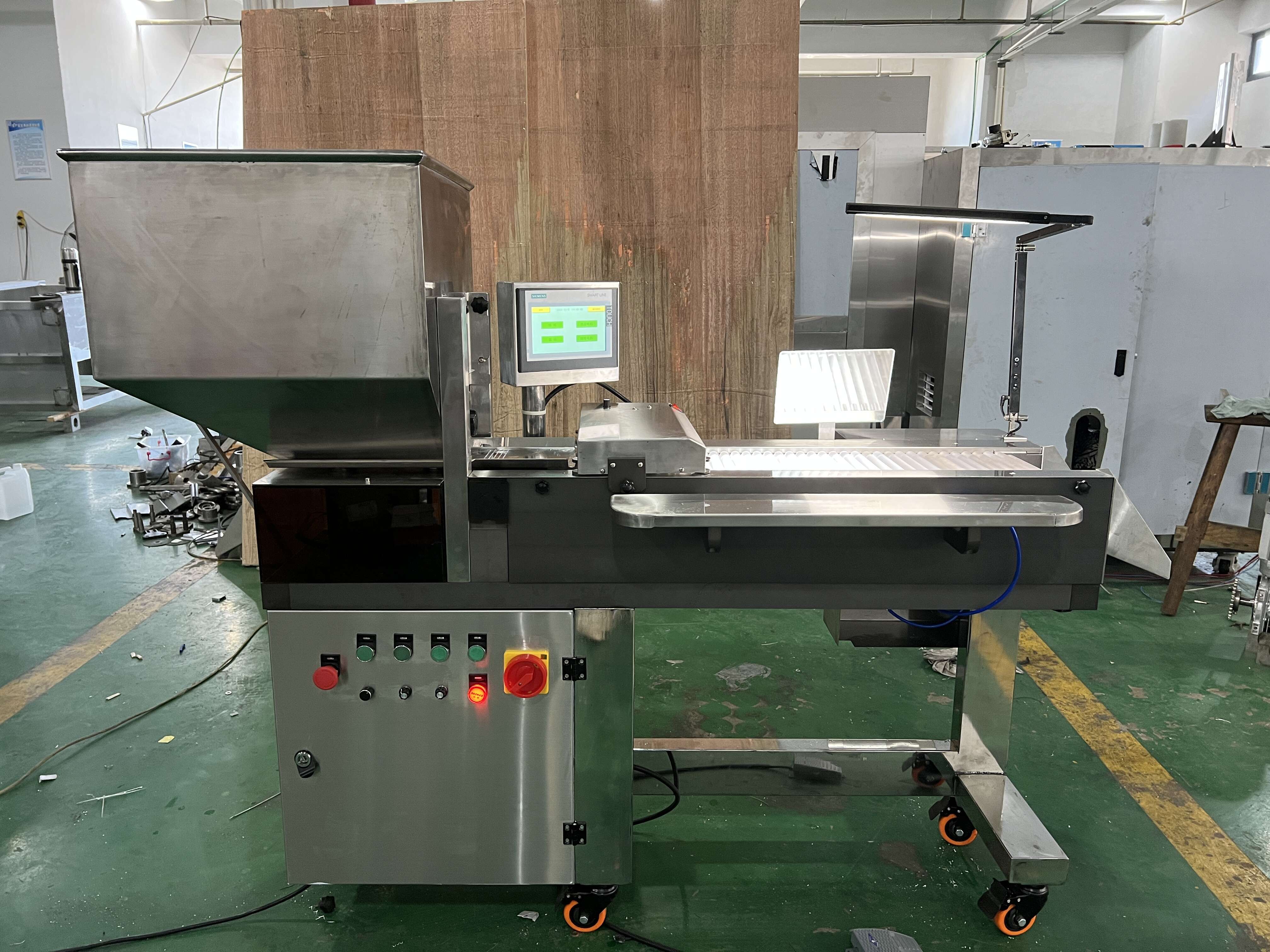

Model YJX-220B Capsule &tablet Inspecting Machine
Description:
YJX-220B model drug inspecting machine is a new product researched by our company on the basis of integration of domestic and foreign advanced technologies in order to meet the needs of pharmaceutical sector. It can test outlook quality for hard capsules, soft capsules and tablets.
Work principle:
The products enter into the vibrating deeper through the bunker, and then enter into the rotating roller in single. On the feeding tray is a screen mesh that can get rid of the pellets and chips in the product. Under the feeding tray is a power collecting box that can recycle the small chips. The medicines equally drop on the rotating roller from feeding tray, and then they will continuously overturn in front of the operator. And thus the operator can easily select the unqualified product out from them. The foot switch can stop the delivery belt at any time. The medicine still keep overturning while the delivery belt is stopped, which won't affect the testing process. There is an adjustable mirror that can help the operator select the unqualified product at the other end. As the vacuum system is applied, it needs not to connect a vacuum pump outside. There is no blind angle and fade zone in its design. As a result, it can assure the products can be tested in all directions.
The rotating speed for roller can be adjusted alone. It won't be affected by the testing speed. It is a good equipment.
| Scope of application | Inspection of hard or soft capsules plain or coated tablets and other round or cylindrical objects.MIn tablet thickness :3mm |
| Output | Up to 120000capsules/h or approx .50kg tablets,depending on product&product size |
| Electrical connection | 220V/50Hz,single phase or 110V/60Hz,single phase |
| Overall dimension | 1400*650*1250(H*L*W)mm |
| Power input | 0.6Kw |
| Weight | 125kg |
| CompressedAir | 6 bar |
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What’s the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment, and D/P is acceptable as well.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
Specifications
1)inspecting: Hard capsules, soft capsules, plain or coated tablets
2)output up to 120000 capsules/h
3)easy cleaning &maintance
Model YJX-220B Capsule &tablet Inspecting Machine
Description:
YJX-220B model drug inspecting machine is a new product researched by our company on the basis of integration of domestic and foreign advanced technologies in order to meet the needs of pharmaceutical sector. It can test outlook quality for hard capsules, soft capsules and tablets.
Work principle:
The products enter into the vibrating deeper through the bunker, and then enter into the rotating roller in single. On the feeding tray is a screen mesh that can get rid of the pellets and chips in the product. Under the feeding tray is a power collecting box that can recycle the small chips. The medicines equally drop on the rotating roller from feeding tray, and then they will continuously overturn in front of the operator. And thus the operator can easily select the unqualified product out from them. The foot switch can stop the delivery belt at any time. The medicine still keep overturning while the delivery belt is stopped, which won't affect the testing process. There is an adjustable mirror that can help the operator select the unqualified product at the other end. As the vacuum system is applied, it needs not to connect a vacuum pump outside. There is no blind angle and fade zone in its design. As a result, it can assure the products can be tested in all directions.
The rotating speed for roller can be adjusted alone. It won't be affected by the testing speed. It is a good equipment.
| Scope of application | Inspection of hard or soft capsules plain or coated tablets and other round or cylindrical objects.MIn tablet thickness :3mm |
| Output | Up to 120000capsules/h or approx .50kg tablets,depending on product&product size |
| Electrical connection | 220V/50Hz,single phase or 110V/60Hz,single phase |
| Overall dimension | 1400*650*1250(H*L*W)mm |
| Power input | 0.6Kw |
| Weight | 125kg |
| CompressedAir | 6 bar |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What’s the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment, and D/P is acceptable as well.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
