DPH-260

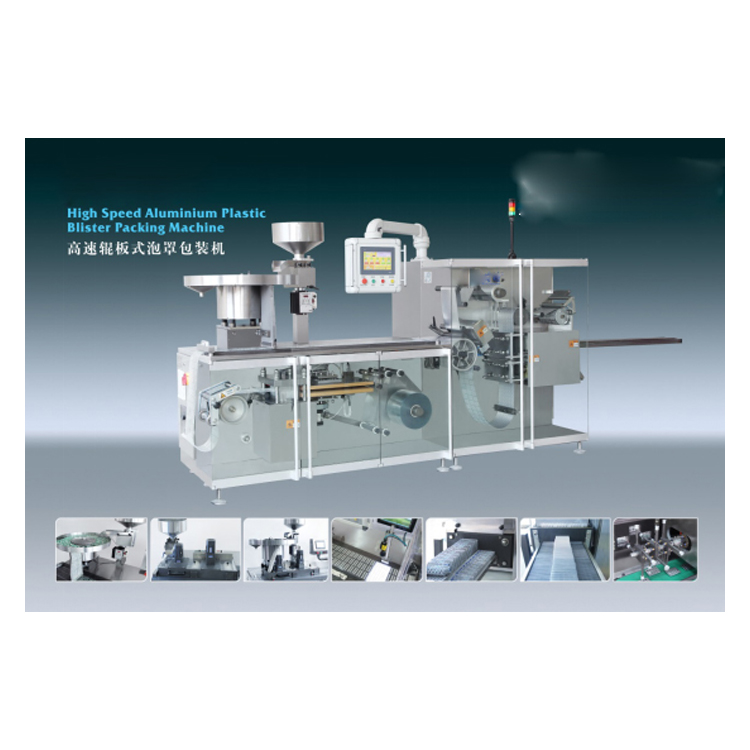

DPH-260 Series High Speed Roller Plate Blister Packaging Machine
Product Description
Applications:
It is suitable for capsule,tablet,big honey pill,candy,liquid,paste,one injector as well as irregular shape
AL-PVC,paper-plastic composite and ALU-ALU sealing packaging in pharmaecutical,healthcare,food, cosmetics industry etc.
Technical specifications:
Item | Unit | the main technical parameters |
Maximum punching speed | Times/min | 150 |
Maximum forming depth | mm | 12 |
Maximum forming area | mm | 180×260（L×W） |
PVC (thickness × width) | mm | （0.25-0.35）×260 |
Aluminum foil PTP (thickness × width) | mm | 0.02×260 |
Outer diameter of PVC coil | mm | <φ300 |
PTP coil outer diameter | mm | <φ250 |
PVC PTP core aperture | mm | φ70～76 |
Dimensions (L×W×H) | mm | DPH-260：3130×1150×1900 |
Air pressure | Mpa | Air pressure 0.5-0.7Mpa Air consumption: 0.2m⊃3;/min |
Cooling water | Mpa | Water pressure: 0.1-0.25Mpa Water consumption: 0.01-0.02m⊃3;/min Circulating cold water tank or tap water |
weight | kg | 2600 |
Installed power | kw | 16.5kw 380V/ 50Hz (According to customer requirements) |
Samples:
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://sc02.alicdn.com/kf/HTB1yfSOaQT2gK0jSZFk763IQFXaB/224767400/HTB1yfSOaQT2gK0jSZFk763IQFXaB.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://sc01.alicdn.com/kf/HTB1txKNaUH1gK0jSZSy760tlpXaM/224767400/HTB1txKNaUH1gK0jSZSy760tlpXaM.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://sc02.alicdn.com/kf/HTB1FuKPaQH0gK0jSZPi761vapXaz/224767400/HTB1FuKPaQH0gK0jSZPi761vapXaz.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://sc02.alicdn.com/kf/HTB1UHmNaQP2gK0jSZPx761cQpXa8/224767400/HTB1UHmNaQP2gK0jSZPx761cQpXa8.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
