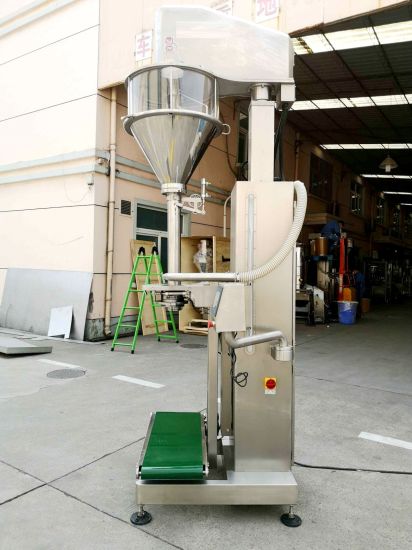

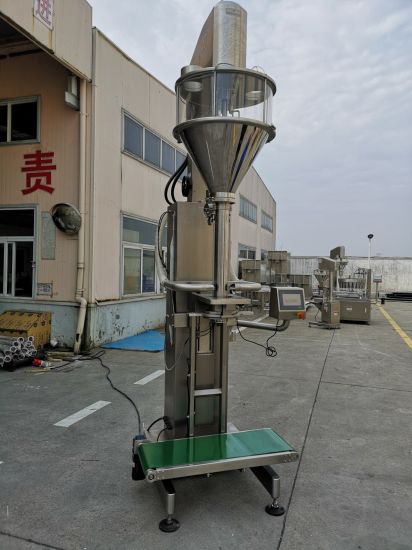

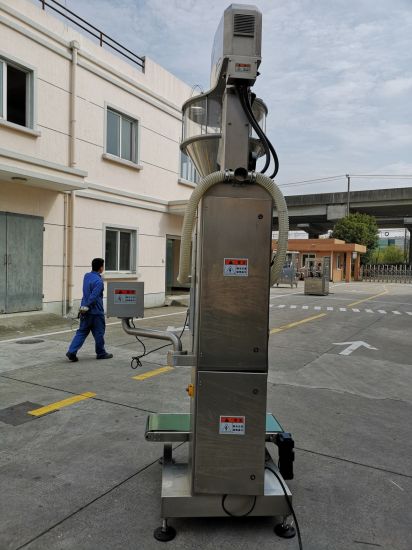

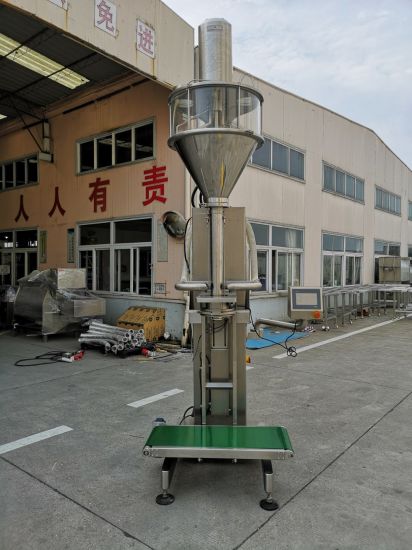

Dcs-1b Semi - Automatic Powder Auger Filling Machine
Main features

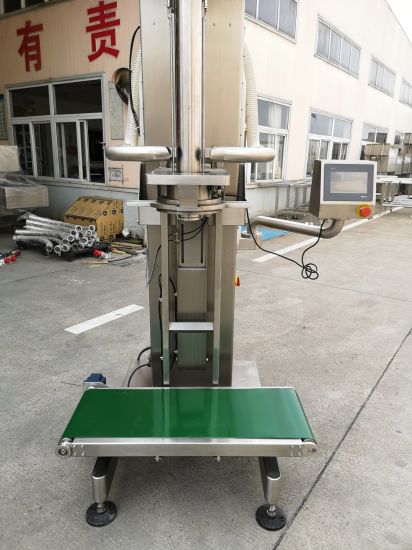

Pneumatic bag clamper and platform equip with load cell to handle two speeds filling as per preset weight.Featured with high speed and accuracy weighing system to guarantee the high packaging accuracy.
Servo motor does up-down work driving with tray together, the up-down rate can be set randomly, no dust spouts out when filling.
With servo motor and servo drive controlled auger, perform stably, and with high accuracy.
PLC control, touch screen display, easy to operate.
Made of stainless steel, combined hopper or split hopper, easily to be cleaned.
With handwheel to adjust the height , easy to fill many kinds of weight.
With fixed screw installation, the material quality won’t be effected.
Process: put bag/can(container) on the machine → container raise → fast filling，container declines → weight reaches the pre-set number → slow filling → weight reaches the goal number → take the container away manually
Note: the pneumatic bag-clamp equipment and can-hold set is optional ,they are suitable for can or bag filling separately.
Two filling modes can be inter-changeable,fill by volume or fill by weight.Fill by volume featured with high speed but low accuracy.Fill by weight featured with high accuracy but low speed.
Main Technical Date
|
Packing Weight |
1kg-50kg |
|
Packing Accuracy |
1–20kg, ≤±0.1-0.2%,>20kg,≤±0.05-0.1% |
|
Packing Speed |
2 - 8 time per min |
|
Power Supply |
3P AC208 - 415V 50/60Hz |
|
Air Supply |
6kg/cm2 0.1m3/min |
|
Total Power |
3.0 Kw |
|
Total Weight |
500kg |
|
Overall Dimension |
1125×975×3230mm |
|
Hopper Volume |
100 L |
DCS-1B Semi - Automatic Powder Auger Filling Machine
PLC touch screen
Step motor
Filling range adjustable
Small machine
Semi powder filling machine
Specifications:
1) Method of measurement: Screw type
2) Range of measurement: 100-1000ml
3)Feeding system: Shaking filler machine
4) Filling size: Adjustable
5) Total power: 410W
6) Weight: 100kg
7) Outline dimensions L*W*H: (720*580*1750)mm

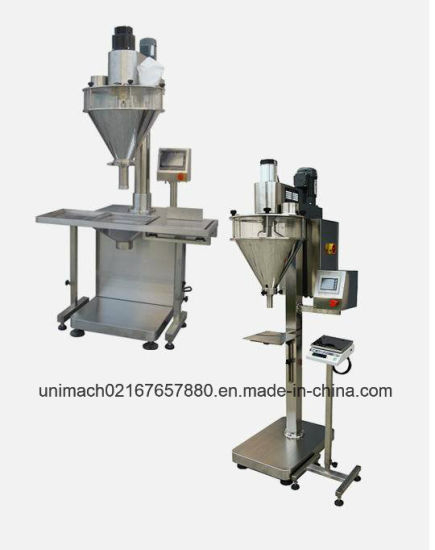

| Model | DCS-1A-22 | DCS-1B-321 | DCS-1B-423 |
| Control system | PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen |
| Hopper | Quick disconnecting hopper 25L | Quick disconnecting hopper 50L | Split hopper 50L |
| Packing Weight | 1 - 500g | 10 - 5000g | 10 - 5000g |
| Packing Weight | ≤ 100g, ≤±2%; 100 - 500g, ≤±1% | ≤ 100g,≤±2%; 100 - 500g,≤±1%; ≥500g,≤±0.5% | ≤ 100g, ≤±2%; 100-500g, ≤±1%; ≥500g, ≤±0.5% |
| Filling speed | 40 - 120 times per min | 40 - 120 times per min | 40 - 120 times per min |
| Power supply | 3P AC208-415V 50/60Hz | 3P AC208-415V 50/60Hz | 3P AC208-415V 50/60Hz |
| Total Power | 0.93 Kw | 1.4Kw | 1.4Kw |
| Total Weight | 130kg | 260kg | 280kg |
| Overall Dimensions | 800×790×1900mm | 1140×970×2200mm | 1140×970×2200mm |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
