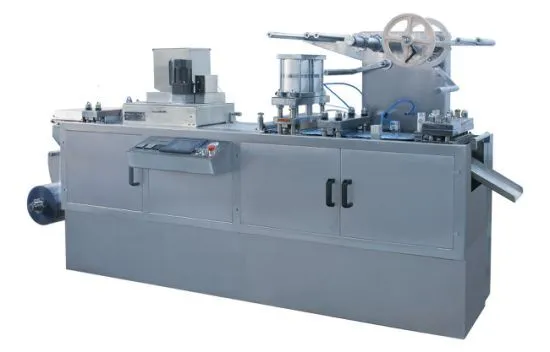

Dpb-250e Alu-PVC Blister Packing Machine

Quantity:

Product specify:

This product is a newly packaging machine designed for machine in our company; Its function has reached domestic leading level. It is suitable for capsule, tablet, big honey pill, candy, liquid, paste, one injector as well as irregular shape Al-plastic, paper-plastic composite and Al-Al sealing packaging in pharmacy, healthcare, food, cosmetics, medical equipment industry etc. This machine is adopted with micro-computer PLC, frequency converter, touch panel operation, high automation; It is ideal blister packaging equipment. The product passed the provincial science and technology appraisal.

Feature:

1, Blister forming, hot-sealing, lot number printing, avulsion line impressing and cutting etc all adopt mandrel orientation, each can move freely in the mandrel when shaking the hand wheel, and it has staff gauge, easy to adjust and exact orientation.
2, Manipulator towing adopted culms double pendulum device, increased traction adjustable scope of the itinerary (it can get to 180mm), which can fit for medicine-card packaging of different sizes. The machine can registration heating, positive forming, up and down moiré , air cylinder heating sealing, automatic feeding, automatic lot number printing, automatic cutting die, easy to operate and credible running.
3, Forming positive pressure air distribution with mechanical punch, ensuring blister forming well, and could collocate exclusive Automatic Feeder. It could fit for the packaging of ampoule, needle, vial, big honey pill, medicine machine and some special shape etc.
4, Main transmission part adopts parallel axis and bevel wheel speed reducer, forming dies and hot-sealing dies and impressing dies adopt bolt orientation, with exact orientation, easy to change dies and material saving.
5, Detachable design make the machine can be easily carried and installed according to the requirement of user.

Notes:

1.It can optional add opposite sealing device with cursor trace.
2.It can optional Plexiglas Cover.
3.It can optional add ink-jet printer.

Dpb-250e Alu-PVC Blister Packing Machine

Dpb-250e Alu-PVC Blister Packing Machine
Dpb-250e Alu-PVC Blister Packing Machine

Cutting Frequency(Times/min) 6-50
Production Capacity(pcs/h) 35,000-230,000
Max Forming Areas And Depth(mm) 240×150×26 (standard 240×150×14)
Stroke(mm) 40-160 (Can Be Lengthened To 180mm As User's Requirements)
Standard blister size(mm) 80×57 (Can Be Manufactured As User's Requirements)
Air Pressure(MPa) 0.4-0.6
Air Supply ≥0.3m3/min
Total Power 380V/220V 50Hz 6.2kw
Main Motor Power (KW) 1.5
PVC Hard Pieces(mm) 0.15-0.5×250
PTP Aluminum Foil(mm) 0.02-0.035×250
Dialysis Paper(mm) 50-100g×250
Mould Cooling Tap Water Or Circulating Water
Overall Dimensions(mm) 3000×730×1600(L×W×H)
Weight(kg) 1600


Packaging & Shipping

 1.Nomally shipping steps:

 S45PNZ%`OL`M6O8H}V(SDJ

2.Our packing and shipping:

(4[KDGL_NF%E6%2]D`4JYP

Our Services

 0OC}YRDYXP])TO]QMXZ48IJ

     Pre-Sales Service:



         * Inquiry and consulting support.



         *Quickly reaction.



          *Factory inspection available anytime.





      After-Sales Service:



         *Prompt technical support



        *Engineers available to service machinery overseas



        *Installation &commissioning,good training for customers.





Our customer

 KE1PX$_SO]LLORZU3`DH8UW



Certifications

[$X~Z{0)[{$PW5F}H666N6M



Company Information

RX2]L7{%NOW0`YXF9~)M{_G

FAQ

 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.



Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.



Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
