Dpb-250y Automatic Liquid Blister Packing Machine (chocolate, honey, butter, jam, ketchup)

Availability:
Quantity:

DPB-250Y Automatic Liquid Blister Packing Machine


Dpb-250y Automatic Liquid Blister Packing Machine (chocolate, honey, butter, jam, ketchup)

Specifications:
Packing the liquid like chocolate,butter,jam,honey,ketchup,tomato sauce and etc.
PLC control,touch screen operation
With automatic liquid feeder,liquid mixing tank
CE standard


Description:

This machine is suitable for packing the liquid like chocolate, butter and jam etc.
This machine is the latest medicine and food packing machine which has a high quality and a high output. It has the advantages of improving the efficiency and reducing the cost. It is the first-choice packing equipment of producing of vocations such as pharmacy and food.
This machine can be linked to produce with boxing machine and pillow packing machine.

Procedure:

1.  Forming film of reel support with automatic unwinding system.
2.  Paten heating system.
3.  Compressed air forming station.
4.  Automatic filling device.
5.  Cover foil reel support with automatic unwinding system cover foil unwinding system.
6.  Guide rails.
7.  Sealing station.
8.  Punching station
9.  Waste winding unit.

Feature:

1.  PLC touch screen control system.
2.  All materials contact parts are in S.S.316L, The main body of the machine is
    Fabricated out of SS 304, Meet the GMP standard.
3.  With automatic liquid feeder.
4.  Board-shape mould, forming with air pressure, being suitable for standard of any former.
5.  Roller-thread hot-sealing, good sealing effect, light-electricity location, accurate synchronization.
6.  Across non-waste sides' punching can save about 200,000 materials every year.
7.  Production's landscape orientation's output can supply convenience to the boxing machine
    and pillow packing machine.
8.  Compact and simple structure.
9.  Platen sealing.
10.  Automatic rejection of blisters.
11.  Alarm system.
12.  CE certificate.
Technical parameters:

Maximum packing speed

25 times/min

Maximum capacity

400 blisters/min

Forming materials

PVC/PVDC,PET

Maximum forming area

250 x 150 mm

Maximum forming depth

30 mm

Power

5.7 KW

Power supply

AC, 380V/50HZ 3 phase

Air consumption

≥ 0.22 M3/min(self-prepared)

Air pressure

0.6 MPa

Net weight

1500 kg

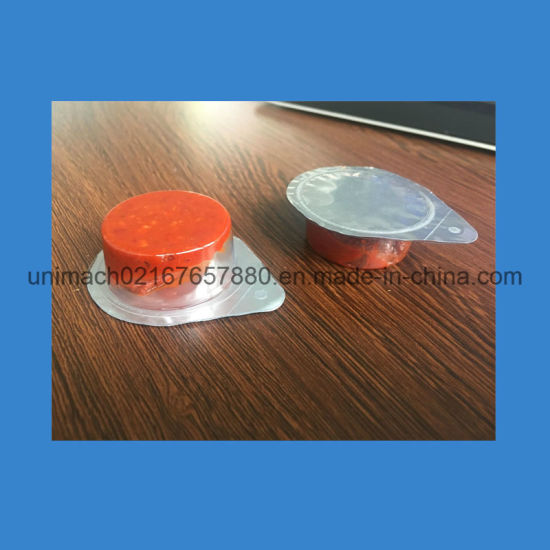

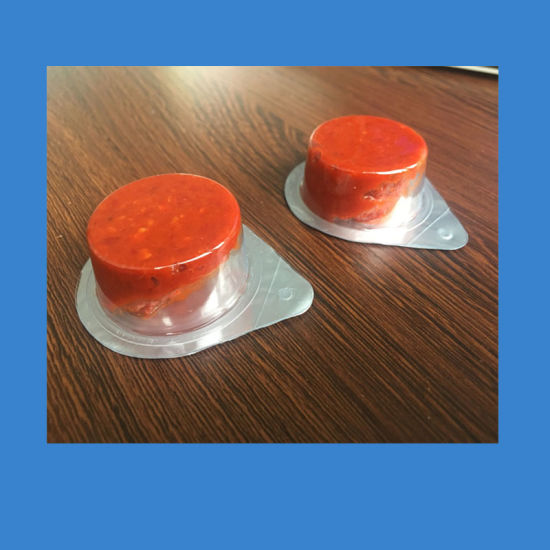

Samples:
Dpb-250y Automatic Liquid Blister Packing Machine (chocolate, honey, butter, jam, ketchup)


Packaging & Shipping

 1.Nomally shipping steps:

 S45PNZ%`OL`M6O8H}V(SDJ

2.Our packing and shipping:

(4[KDGL_NF%E6%2]D`4JYP

Our Services

 0OC}YRDYXP])TO]QMXZ48IJ

     Pre-Sales Service:



         * Inquiry and consulting support.



         *Quickly reaction.



          *Factory inspection available anytime.





      After-Sales Service:



         *Prompt technical support



        *Engineers available to service machinery overseas



        *Installation &commissioning,good training for customers.





Our customer

 KE1PX$_SO]LLORZU3`DH8UW



Certifications

[$X~Z{0)[{$PW5F}H666N6M



Company Information

RX2]L7{%NOW0`YXF9~)M{_G



FAQ

 Q1.What's your delivery method?

 A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.



Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.



Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
