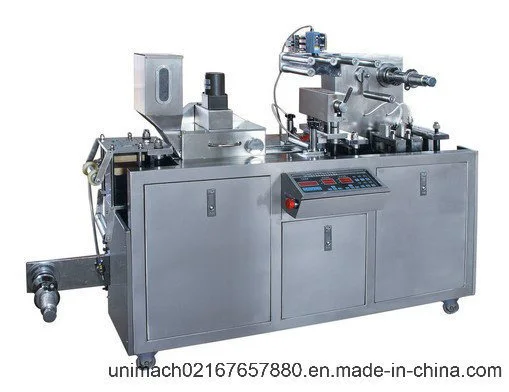

Dpb-80 Samll Flat-Plate Automatic Blister Packing Machine

Quantity:

          DPB-80 Mini Flat-Plate Automatic Blister Packing Machine


Dpb-80 Samll Flat-Plate Automatic Blister Packing Machine

Product Description
Applications:

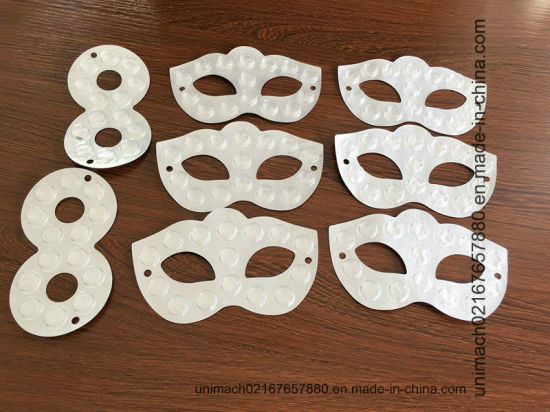

It is suitable for capsule, tablet, big honey pill, candy, liquid, paste, one injector as well as irregular shape
AL-PVC, paper-plastic composite and ALU-ALU sealing packaging in pharmaecutical, healthcare, food, cosmetics industry etc.

Technical specifications

Cutting Frequency (Times/min) 20-40
Capacity(Blister/h) 2400 (According To Standard Plate 80×57 Can Calculate The Max Capacity)
Max forming area and depth(mm) 80×100×26 (Standard 70×90×14)
Stroke (mm) 20-100 (Can Be Manufactured As User's Requirements)
Air Pressure(MPa) 0.4-0.6
Standard Plate (mm) 80×57 (Can Be Manufactured As User's Requirements)
Total Power 380V/220V 50Hz 1.8kw
Main motor power (kw) 0.75
PVC hard pieces(mm) 0.15-0.5×80
PTP Aluminum Foil (mm) 0.02-0.035×80
Dialysis Paper (mm) 50-100g×80
Mould Cooling Tap water or recycle water
Overall Dimensions (mm) 1400×460×950 (L×W×H)
Weight (kg) 450

Dpb-80 Samll Flat-Plate Automatic Blister Packing Machine
Dpb-80 Samll Flat-Plate Automatic Blister Packing Machine
Dpb-80 Samll Flat-Plate Automatic Blister Packing Machine
Dpb-80 Samll Flat-Plate Automatic Blister Packing Machine
